3.3 Servo Access Box (SAB)

The SAB is the power supply and central interface/gateway to the ISD 510 servo system. It guarantees the connection of the
servo drives to the fieldbus, generates the DC-link voltage for the ISD 510 servo system, and delivers a high-density output.
It can be controlled using the local control panel (LCP) or via Ethernet-based fieldbus.
The LEDs on the front of the unit show the operating status and warnings (see chapter 7.2.2 Operating LEDs on the Servo
3 3
Access Box for further information).
NOTICE
The SAB has an IP-rating of IP20. It is only designed for use within a control cabinet. The SAB may be damaged if
exposed to fluids.
All power and signal cables are wired into the SAB and 2 independent lines of servo drives can be connected.
Service functions, such as voltage measuring, are performed by the SAB.
33

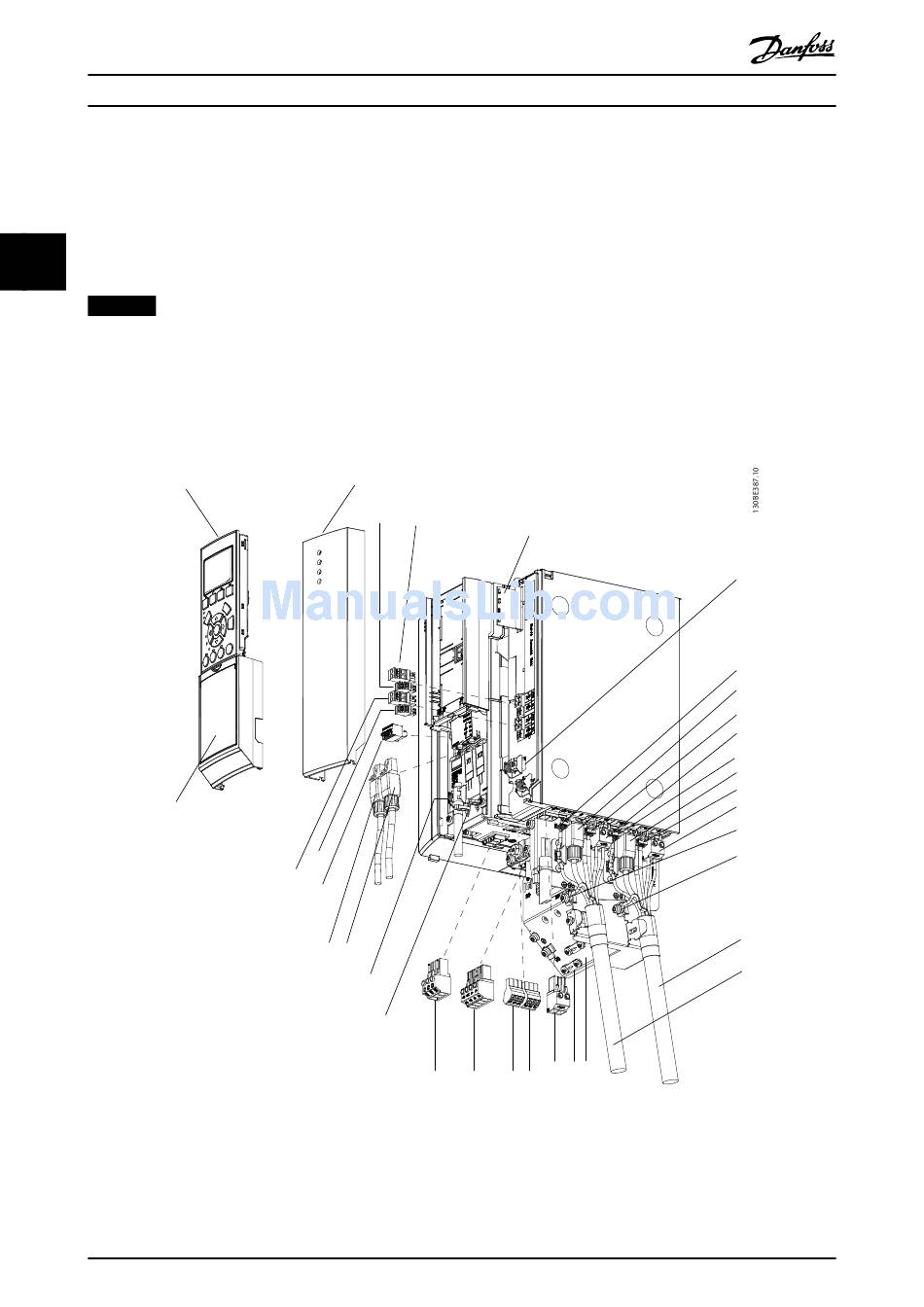

Illustration 3.8 Explosion Drawing of the Servo Access Box
18
VLT
1
31
32
30
29 28
