5

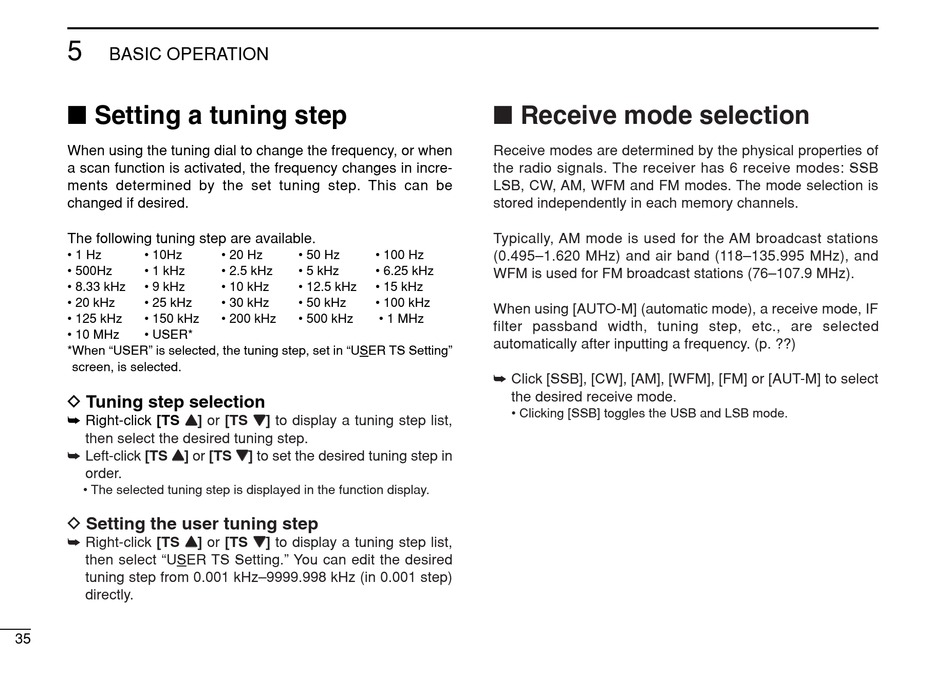

BASIC OPERATION
I Setting a tuning step
When using the tuning dial to change the frequency, or when
a scan function is activated, the frequency changes in incre-
ments determined by the set tuning step. This can be
changed if desired.
The following tuning step are available.
• 1 Hz • 10Hz
• 500Hz • 1 kHz
• 8.33 kHz • 9 kHz
• 20 kHz • 25 kHz
• 125 kHz • 150 kHz
• 10 MHz • USER*
*When "USER" is selected, the tuning step, set in "USER TS Setting"
screen, is selected.
D Tuning step selection
➥ Right-click [TS
Y Y ] or [TS Z Z ] to display a tuning step list,
then select the desired tuning step.
➥ Left-click [TS Y Y ] or [TS Z Z ] to set the desired tuning step in
order.
• The selected tuning step is displayed in the function display.
D Setting the user tuning step
➥ Right-click [TS Y Y ] or [TS Z Z ] to display a tuning step list,
then select "USER TS Setting." You can edit the desired
tuning step from 0.001 kHz–9999.998 kHz (in 0.001 step)
directly.
35
• 20 Hz • 50 Hz • 100 Hz
• 2.5 kHz • 5 kHz • 6.25 kHz
• 10 kHz • 12.5 kHz • 15 kHz
• 30 kHz • 50 kHz • 100 kHz
• 200 kHz • 500 kHz • 1 MHz

I Receive mode selection

Receive modes are determined by the physical properties of
the radio signals. The receiver has 6 receive modes: SSB
LSB, CW, AM, WFM and FM modes. The mode selection is
stored independently in each memory channels.
Typically, AM mode is used for the AM broadcast stations
(0.495–1.620 MHz) and air band (118–135.995 MHz), and
WFM is used for FM broadcast stations (76–107.9 MHz).
When using [AUTO-M] (automatic mode), a receive mode, IF
filter passband width, tuning step, etc., are selected
automatically after inputting a frequency. (p. ??)
➥ Click [SSB], [CW], [AM], [WFM], [FM] or [AUT-M] to select
the desired receive mode.
• Clicking [SSB] toggles the USB and LSB mode.
