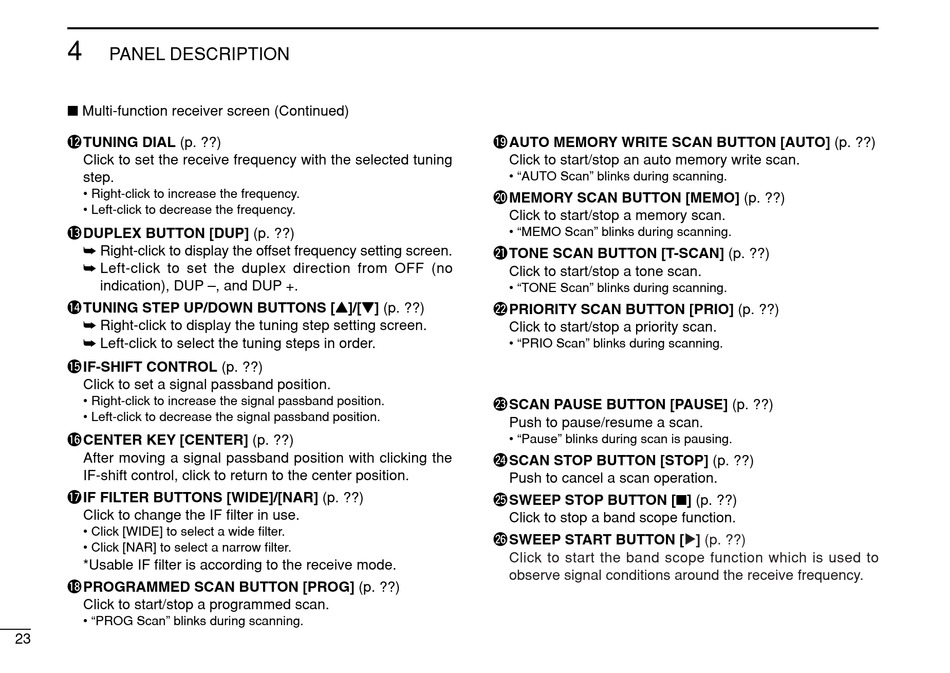

Icom IC-PCR1500 Instruction Manual page 26

4
PANEL DESCRIPTION
I Multi-function receiver screen (Continued)
!2 T UNING DIAL (p. ??)
Click to set the receive frequency with the selected tuning
step.
• Right-click to increase the frequency.
• Left-click to decrease the frequency.
!3 DUPLEX BUTTON [DUP] (p. ??)
➥ Right-click to display the offset frequency setting screen.
➥ Left-click to set the duplex direction from OFF (no
indication), DUP –, and DUP +.
!4 T UNING STEP UP/DOWN BUTTONS [Y]/[Z] (p. ??)
➥ Right-click to display the tuning step setting screen.
➥ Left-click to select the tuning steps in order.
!5 IF-SHIFT CONTROL (p. ??)
Click to set a signal passband position.
• Right-click to increase the signal passband position.
• Left-click to decrease the signal passband position.
!6 CENTER KEY [CENTER] (p. ??)
After moving a signal passband position with clicking the
IF-shift control, click to return to the center position.
!7 I F FILTER BUTTONS [WIDE]/[NAR] (p. ??)
Click to change the IF filter in use.
• Click [WIDE] to select a wide filter.
• Click [NAR] to select a narrow filter.
*Usable IF filter is according to the receive mode.
!8 P ROGRAMMED SCAN BUTTON [PROG] (p. ??)
Click to start/stop a programmed scan.
• "PROG Scan" blinks during scanning.
23
!9 A UTO MEMORY WRITE SCAN BUTTON [AUTO] (p. ??)
Click to start/stop an auto memory write scan.
• "AUTO Scan" blinks during scanning.
@0 M EMORY SCAN BUTTON [MEMO] (p. ??)
Click to start/stop a memory scan.
• "MEMO Scan" blinks during scanning.
@1 T ONE SCAN BUTTON [T-SCAN] (p. ??)
Click to start/stop a tone scan.
• "TONE Scan" blinks during scanning.
@2 P RIORITY SCAN BUTTON [PRIO] (p. ??)
Click to start/stop a priority scan.
• "PRIO Scan" blinks during scanning.
@3 W EATHER ALERT BUTTON [WX] (p. ??)
Push to start the weather alert function.
@3 S CAN PAUSE BUTTON [PAUSE] (p. ??)
Push to pause/resume a scan.
• "Pause" blinks during scan is pausing.
@4 S CAN STOP BUTTON [STOP] (p. ??)
Push to cancel a scan operation.
@5 SWEEP STOP BUTTON [I] (p. ??)
Click to stop a band scope function.
@6 SWEEP START BUTTON
Click to start the band scope function which is used to
observe signal conditions around the receive frequency.
[≈ ≈ ] (p. ??)
