I Function Display - Icom IC-PCR1500 Instruction Manual

4
PANEL DESCRIPTION

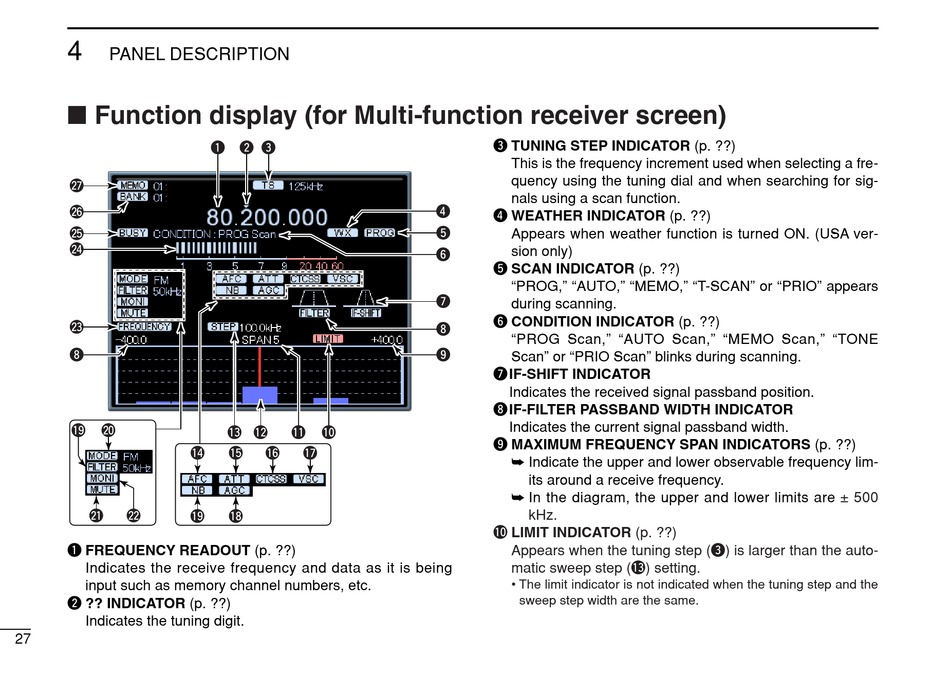

I Function display (for Multi-function receiver screen)
@7
@6
@5
@4
@3
i
!9 @0
!4
@1 @2
!9
q FREQUENCY READOUT (p. ??)
Indicates the receive frequency and data as it is being
input such as memory channel numbers, etc.
w ?? INDICATOR (p. ??)
Indicates the tuning digit.
27
q w e
!3 !2 !1 !0
!5 !6 !7
!8
e TUNING STEP INDICATOR (p. ??)
This is the frequency increment used when selecting a fre-
quency using the tuning dial and when searching for sig-
nals using a scan function.
r
r WEATHER INDICATOR (p. ??)
t
Appears when weather function is turned ON. (USA ver-
y sion only)
t SCAN INDICATOR (p. ??)
"PROG," "AUTO," "MEMO," "T-SCAN" or "PRIO" appears
u
during scanning.
y CONDITION INDICATOR (p. ??)
i
"PROG Scan," "AUTO Scan," "MEMO Scan," "TONE
o
Scan" or "PRIO Scan" blinks during scanning.
u IF-SHIFT INDICATOR
Indicates the received signal passband position.
i IF-FILTER PASSBAND WIDTH INDICATOR
Indicates the current signal passband width.
o MAXIMUM FREQUENCY SPAN INDICATORS (p. ??)
➥ Indicate the upper and lower observable frequency lim-
its around a receive frequency.
➥ In the diagram, the upper and lower limits are
kHz.
!0 LIMIT INDICATOR (p. ??)
Appears when the tuning step (e) is larger than the auto-
matic sweep step (!3 ) setting.
• The limit indicator is not indicated when the tuning step and the
sweep step width are the same.
± 500
