Audio Setting Screen - Icom IC-PCR1500 Instruction Manual

13

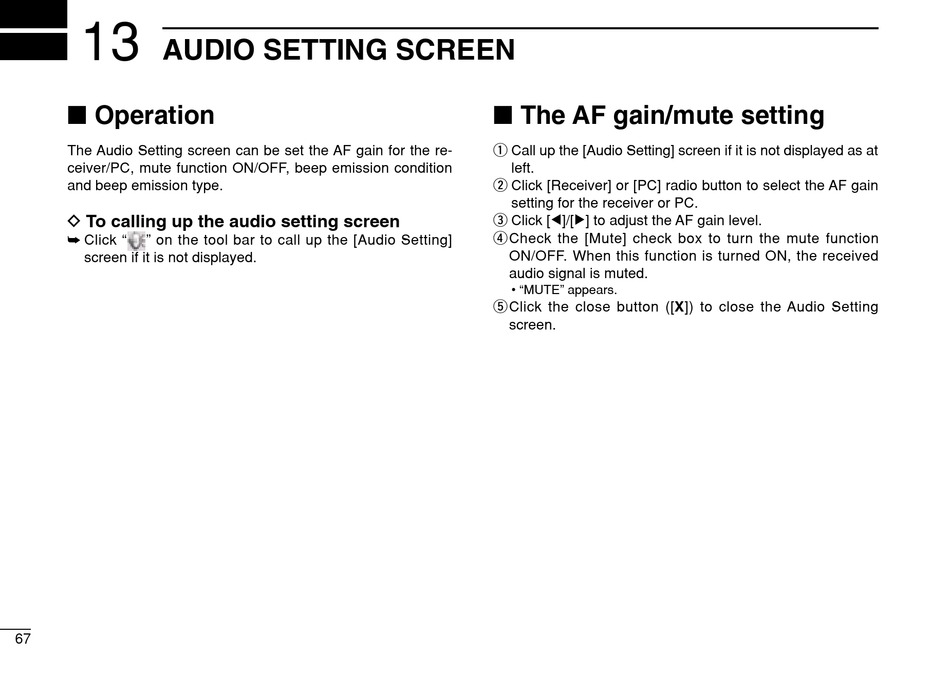

AUDIO SETTING SCREEN

I Operation
The Audio Setting screen can be set the AF gain for the re-
ceiver/PC, mute function ON/OFF, beep emission condition
and beep emission type.
D To calling up the audio setting screen
➥ Click "
" on the tool bar to call up the [Audio Setting]
screen if it is not displayed.
67
I The AF gain/mute setting
q Call up the [Audio Setting] screen if it is not displayed as at
left.
w Click [Receiver] or [PC] radio button to select the AF gain
setting for the receiver or PC.
e Click [Ω]/[≈] to adjust the AF gain level.
rCheck the [Mute] check box to turn the mute function
ON/OFF. When this function is turned ON, the received
audio signal is muted.
• "MUTE" appears.
tClick the close button ([X]) to close the Audio Setting
screen.
