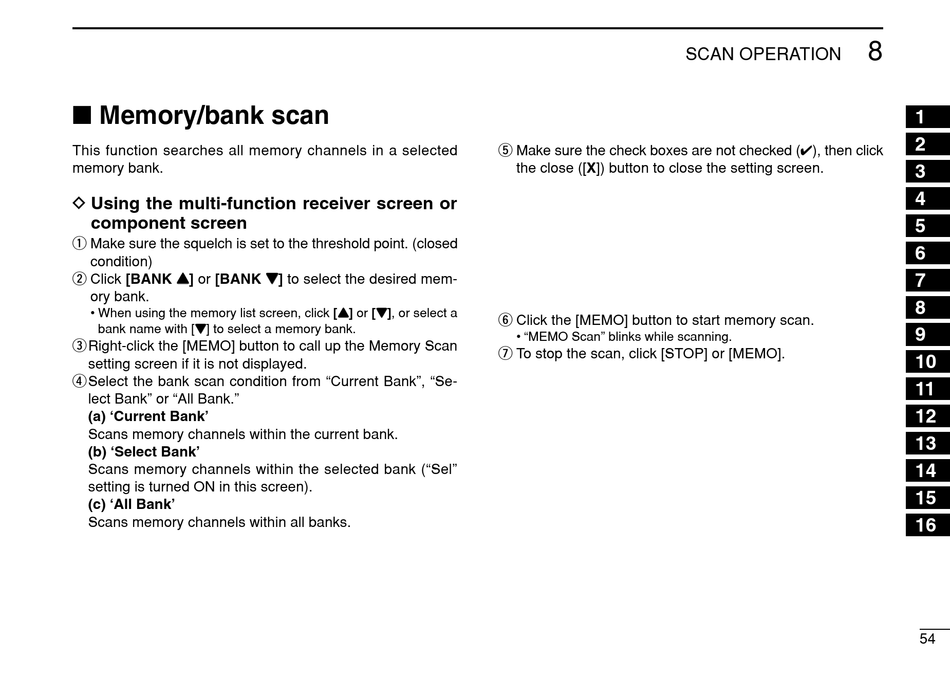

Icom IC-PCR1500 Instruction Manual page 57

I Memory/bank scan
This function searches all memory channels in a selected
memory bank.
D Using the multi-function receiver screen or
component screen
q Make sure the squelch is set to the threshold point. (closed
condition)
w Click [BANK Y Y ] or [BANK Z Z ] to select the desired mem-
ory bank.
• When using the memory list screen, click [Y Y ] or [Z Z ], or select a
bank name with [Z Z ] to select a memory bank.
eRight-click the [MEMO] button to call up the Memory Scan
setting screen if it is not displayed.
rSelect the bank scan condition from "Current Bank", "Se-
lect Bank" or "All Bank."
(a) 'Current Bank'
Scans memory channels within the current bank.
(b) 'Select Bank'
Scans memory channels within the selected bank ("Sel"
setting is turned ON in this screen).
(c) 'All Bank'
Scans memory channels within all banks.
t Make sure the check boxes are not checked (✔), then click
the close ([X]) button to close the setting screen.
y Click the [MEMO] button to start memory scan.
• "MEMO Scan" blinks while scanning.
u To stop the scan, click [STOP] or [MEMO].
SCAN OPERATION
