Multi Channel Monitor - Icom IC-PCR1500 Instruction Manual

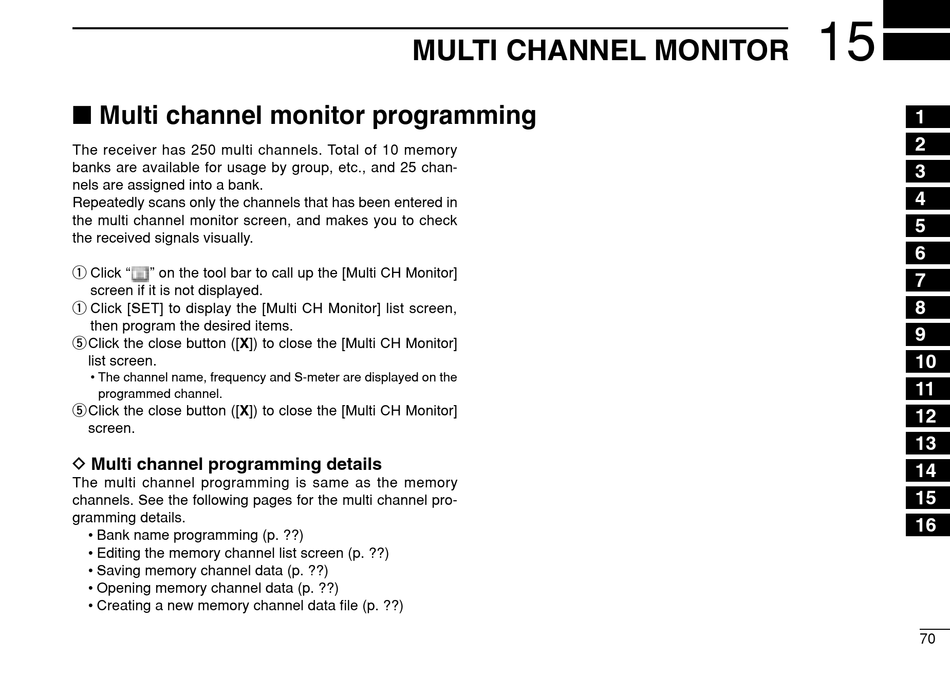

I Multi channel monitor programming
The receiver has 250 multi channels. Total of 10 memory
banks are available for usage by group, etc., and 25 chan-
nels are assigned into a bank.
Repeatedly scans only the channels that has been entered in
the multi channel monitor screen, and makes you to check
the received signals visually.
q Click "
" on the tool bar to call up the [Multi CH Monitor]
screen if it is not displayed.
q Click [SET] to display the [Multi CH Monitor] list screen,
then program the desired items.
tClick the close button ([X]) to close the [Multi CH Monitor]
list screen.
• The channel name, frequency and S-meter are displayed on the
programmed channel.
tClick the close button ([X]) to close the [Multi CH Monitor]
screen.
D Multi channel programming details
The multi channel programming is same as the memory
channels. See the following pages for the multi channel pro-
gramming details.
• Bank name programming (p. ??)
• Editing the memory channel list screen (p. ??)
• Saving memory channel data (p. ??)
• Opening memory channel data (p. ??)
• Creating a new memory channel data file (p. ??)

MULTI CHANNEL MONITOR

15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
70
