7

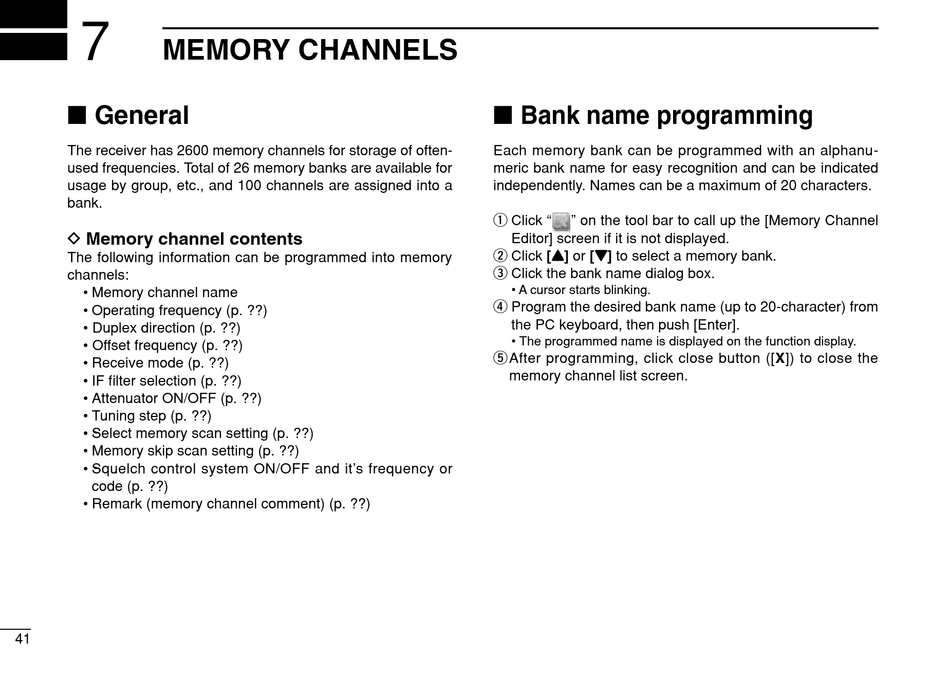

MEMORY CHANNELS
I General
The receiver has 2600 memory channels for storage of often-
used frequencies. Total of 26 memory banks are available for
usage by group, etc., and 100 channels are assigned into a
bank.
D Memory channel contents
The following information can be programmed into memory
channels:
• Memory channel name
• Operating frequency (p. ??)
• Duplex direction (p. ??)
• Offset frequency (p. ??)
• Receive mode (p. ??)
• IF filter selection (p. ??)
• Attenuator ON/OFF (p. ??)
• Tuning step (p. ??)
• Select memory scan setting (p. ??)
• Memory skip scan setting (p. ??)
• Squelch control system ON/OFF and it's frequency or
code (p. ??)
• Remark (memory channel comment) (p. ??)
41
I Bank name programming
Each memory bank can be programmed with an alphanu-
meric bank name for easy recognition and can be indicated
independently. Names can be a maximum of 20 characters.
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
w Click [Y Y ] or [Z Z ] to select a memory bank.
e Click the bank name dialog box.
• A cursor starts blinking.
r Program the desired bank name (up to 20-character) from
the PC keyboard, then push [Enter].
• The programmed name is displayed on the function display.
tAfter programming, click close button ([X]) to close the
memory channel list screen.
