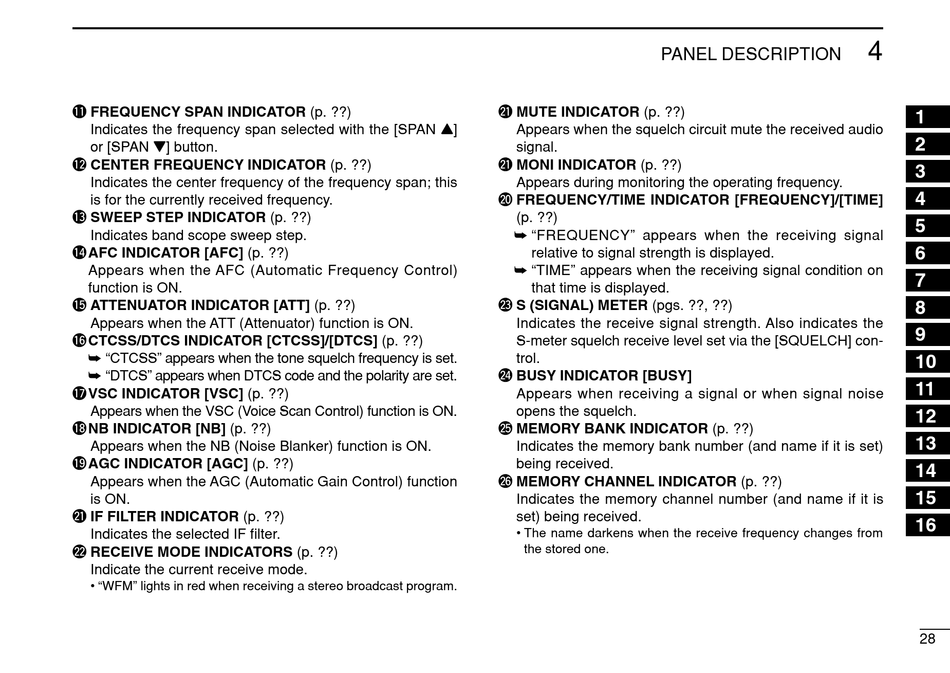

!1 FREQUENCY SPAN INDICATOR (p. ??)
Indicates the frequency span selected with the [SPAN Y]
or [SPAN Z] button.
!2 CENTER FREQUENCY INDICATOR (p. ??)
Indicates the center frequency of the frequency span; this
is for the currently received frequency.
!3 SWEEP STEP INDICATOR (p. ??)
Indicates band scope sweep step.
!4 AFC INDICATOR [AFC] (p. ??)
Appears when the AFC (Automatic Frequency Control)
function is ON.
!5 ATTENUATOR INDICATOR [ATT] (p. ??)
Appears when the ATT (Attenuator) function is ON.
!6 CTCSS/DTCS INDICATOR [CTCSS]/[DTCS] (p. ??)
➥ "CTCSS" appears when the tone squelch frequency is set.
➥ "DTCS" appears when DTCS code and the polarity are set.
!7 VSC INDICATOR [VSC] (p. ??)
Appears when the VSC (Voice Scan Control) function is ON.
!8 NB INDICATOR [NB] (p. ??)
Appears when the NB (Noise Blanker) function is ON.
!9 AGC INDICATOR [AGC] (p. ??)
Appears when the AGC (Automatic Gain Control) function
is ON.
@1 IF FILTER INDICATOR (p. ??)
Indicates the selected IF filter.
@2 RECEIVE MODE INDICATORS (p. ??)
Indicate the current receive mode.
• "WFM" lights in red when receiving a stereo broadcast program.
PANEL DESCRIPTION
@1 MUTE INDICATOR (p. ??)
Appears when the squelch circuit mute the received audio
signal.
@1 MONI INDICATOR (p. ??)
Appears during monitoring the operating frequency.
@0 FREQUENCY/TIME INDICATOR [FREQUENCY]/[TIME]
(p. ??)
➥ "FREQUENCY" appears when the receiving signal
relative to signal strength is displayed.
➥ "TIME" appears when the receiving signal condition on
that time is displayed.
@3 S (SIGNAL) METER (pgs. ??, ??)
Indicates the receive signal strength. Also indicates the
S-meter squelch receive level set via the [SQUELCH] con-
trol.
@4 BUSY INDICATOR [BUSY]
Appears when receiving a signal or when signal noise
opens the squelch.
@5 MEMORY BANK INDICATOR (p. ??)
Indicates the memory bank number (and name if it is set)
being received.
@6 MEMORY CHANNEL INDICATOR (p. ??)
Indicates the memory channel number (and name if it is
set) being received.
• The name darkens when the receive frequency changes from
the stored one.
