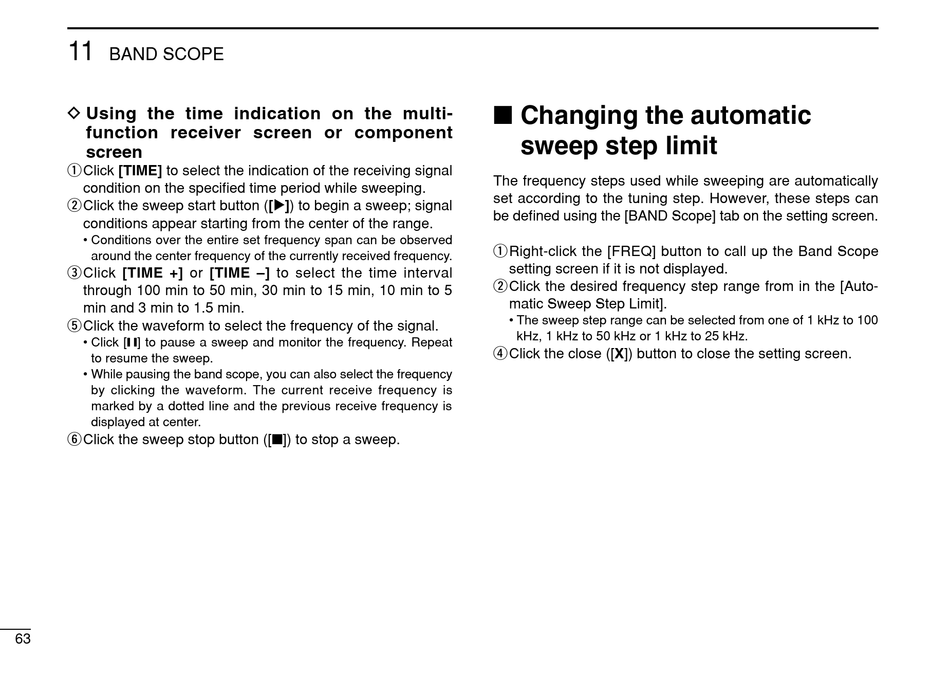

11
BAND SCOPE
D Using the time indication on the multi-
function receiver screen or component
screen
qClick [TIME] to select the indication of the receiving signal
condition on the specified time period while sweeping.
wClick the sweep start button ([≈ ≈ ]) to begin a sweep; signal
conditions appear starting from the center of the range.
• Conditions over the entire set frequency span can be observed
around the center frequency of the currently received frequency.
eClick [TIME +] or [TIME –] to select the time interval
through 100 min to 50 min, 30 min to 15 min, 10 min to 5
min and 3 min to 1.5 min.
tClick the waveform to select the frequency of the signal.
• Click [❙ ❙] to pause a sweep and monitor the frequency. Repeat
to resume the sweep.
• While pausing the band scope, you can also select the frequency
by clicking the waveform. The current receive frequency is
marked by a dotted line and the previous receive frequency is
displayed at center.
yClick the sweep stop button ([']) to stop a sweep.
63
I Changing the automatic
sweep step limit
The frequency steps used while sweeping are automatically
set according to the tuning step. However, these steps can
be defined using the [BAND Scope] tab on the setting screen.
qRight-click the [FREQ] button to call up the Band Scope
setting screen if it is not displayed.
wClick the desired frequency step range from in the [Auto-
matic Sweep Step Limit].
• The sweep step range can be selected from one of 1 kHz to 100
kHz, 1 kHz to 50 kHz or 1 kHz to 25 kHz.
rClick the close ([X]) button to close the setting screen.
