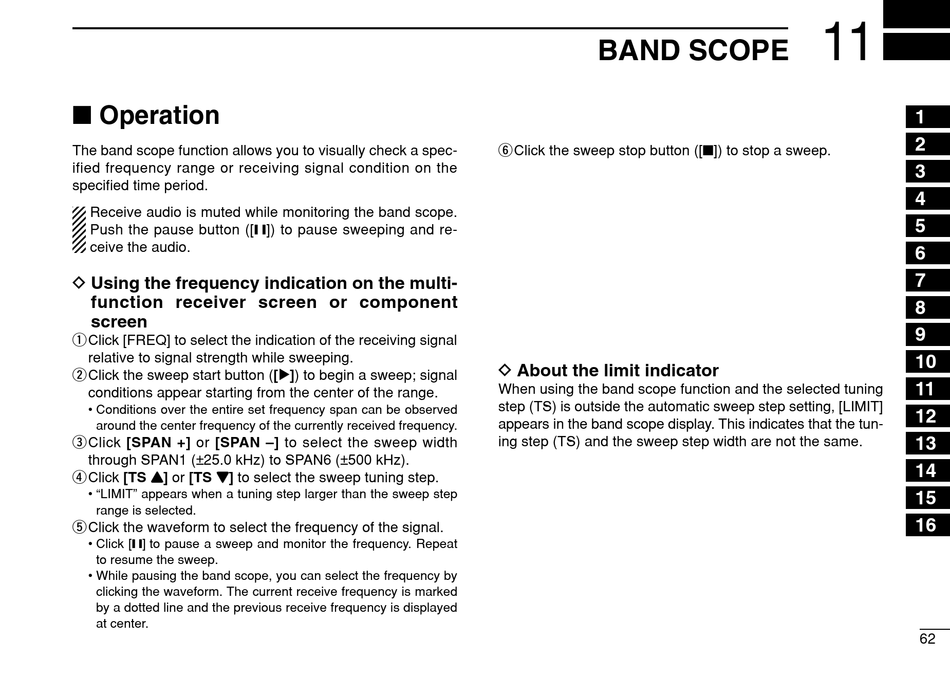

I Operation
The band scope function allows you to visually check a spec-
ified frequency range or receiving signal condition on the
specified time period.
Receive audio is muted while monitoring the band scope.
Push the pause button ([❙ ❙]) to pause sweeping and re-
ceive the audio.
D Using the frequency indication on the multi-
function receiver screen or component
screen
qClick [FREQ] to select the indication of the receiving signal
relative to signal strength while sweeping.
wClick the sweep start button ([≈ ≈ ]) to begin a sweep; signal
conditions appear starting from the center of the range.
• Conditions over the entire set frequency span can be observed
around the center frequency of the currently received frequency.
eClick [SPAN +] or [SPAN –] to select the sweep width
through SPAN1 (±25.0 kHz) to SPAN6 (±500 kHz).
rClick [TS Y Y ] or [TS Z Z ] to select the sweep tuning step.
• "LIMIT" appears when a tuning step larger than the sweep step
range is selected.
tClick the waveform to select the frequency of the signal.
• Click [❙ ❙] to pause a sweep and monitor the frequency. Repeat
to resume the sweep.
• While pausing the band scope, you can select the frequency by
clicking the waveform. The current receive frequency is marked
by a dotted line and the previous receive frequency is displayed
at center.
BAND SCOPE
yClick the sweep stop button ([']) to stop a sweep.
D About the limit indicator
When using the band scope function and the selected tuning
step (TS) is outside the automatic sweep step setting, [LIMIT]
appears in the band scope display. This indicates that the tun-
ing step (TS) and the sweep step width are not the same.
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
62
