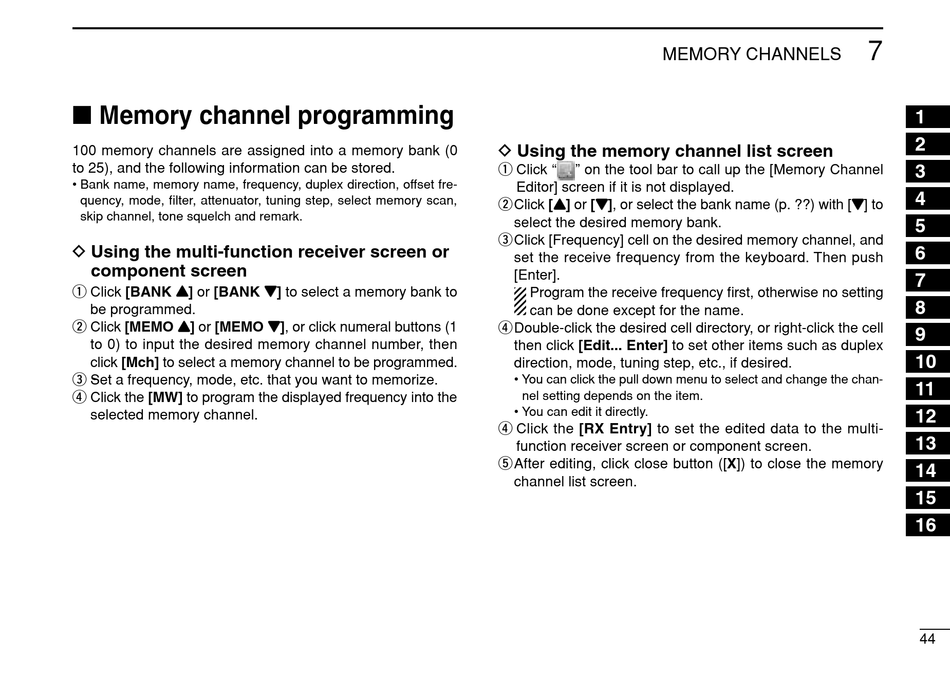

I Memory channel programming
100 memory channels are assigned into a memory bank (0
to 25), and the following information can be stored.
• Bank name, memory name, frequency, duplex direction, offset fre-
quency, mode, filter, attenuator, tuning step, select memory scan,
skip channel, tone squelch and remark.
D Using the multi-function receiver screen or
component screen
q Click [BANK Y Y ] or [BANK Z Z ] to select a memory bank to
be programmed.
w Click [MEMO Y Y ] or [MEMO Z Z ], or click numeral buttons (1
to 0) to input the desired memory channel number, then
click [Mch] to select a memory channel to be programmed.
e Set a frequency, mode, etc. that you want to memorize.
r Click the [MW] to program the displayed frequency into the
selected memory channel.
MEMORY CHANNELS
D Using the memory channel list screen
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
wClick [Y Y ] or [Z Z ], or select the bank name (p. ??) with [Z Z ] to
select the desired memory bank.
eClick [Frequency] cell on the desired memory channel, and
set the receive frequency from the keyboard. Then push
[Enter].
Program the receive frequency first, otherwise no setting
can be done except for the name.
rDouble-click the desired cell directory, or right-click the cell
then click [Edit... Enter] to set other items such as duplex
direction, mode, tuning step, etc., if desired.
• You can click the pull down menu to select and change the chan-
nel setting depends on the item.
• You can edit it directly.
r Click the [RX Entry] to set the edited data to the multi-
function receiver screen or component screen.
tAfter editing, click close button ([X]) to close the memory
channel list screen.
