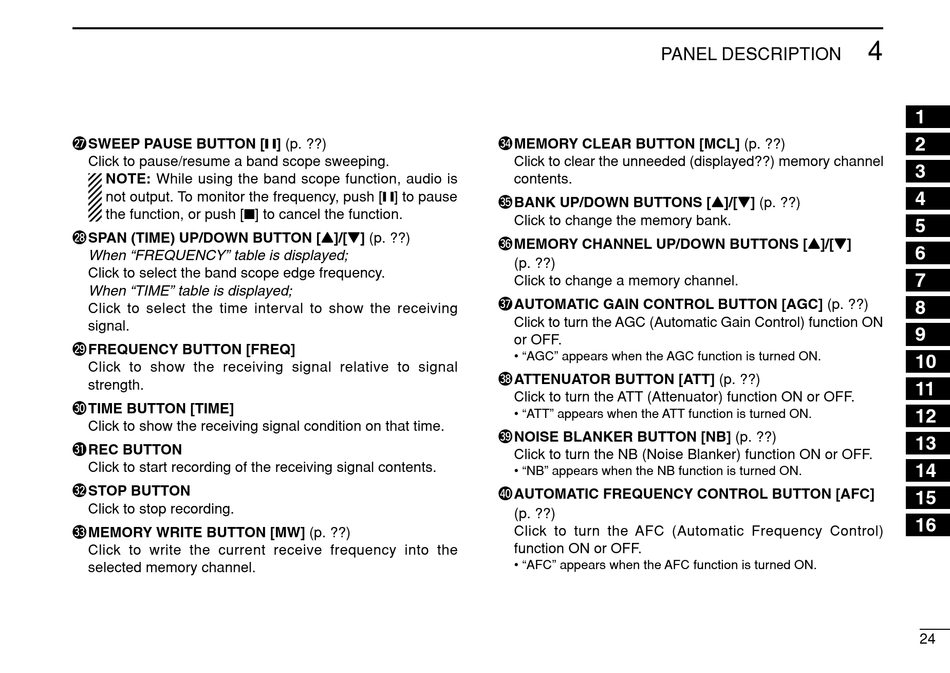

@7 SWEEP PAUSE BUTTON [❙ ❙] (p. ??)
Click to pause/resume a band scope sweeping.
NOTE: While using the band scope function, audio is
not output. To monitor the frequency, push [❙ ❙] to pause
the function, or push [I] to cancel the function.
@8 SPAN (TIME) UP/DOWN BUTTON [Y]/[Z] (p. ??)
When "FREQUENCY" table is displayed;
Click to select the band scope edge frequency.
When "TIME" table is displayed;
Click to select the time interval to show the receiving
signal.
@9 FREQUENCY BUTTON [FREQ]
Click to show the receiving signal relative to signal
strength.
#0 TIME BUTTON [TIME]
Click to show the receiving signal condition on that time.
#1 REC BUTTON
Click to start recording of the receiving signal contents.
#2 STOP BUTTON
Click to stop recording.
#3 MEMORY WRITE BUTTON [MW] (p. ??)
Click to write the current receive frequency into the
selected memory channel.
PANEL DESCRIPTION
#4 MEMORY CLEAR BUTTON [MCL] (p. ??)
Click to clear the unneeded (displayed??) memory channel
contents.
#5 BANK UP/DOWN BUTTONS [Y]/[Z] (p. ??)
Click to change the memory bank.
#6 M EMORY CHANNEL UP/DOWN BUTTONS [Y]/[Z]
(p. ??)
Click to change a memory channel.
#7 AUTOMATIC GAIN CONTROL BUTTON [AGC] (p. ??)
Click to turn the AGC (Automatic Gain Control) function ON
or OFF.
• "AGC" appears when the AGC function is turned ON.
#8 ATTENUATOR BUTTON [ATT] (p. ??)
Click to turn the ATT (Attenuator) function ON or OFF.
• "ATT" appears when the ATT function is turned ON.
#9 NOISE BLANKER BUTTON [NB] (p. ??)
Click to turn the NB (Noise Blanker) function ON or OFF.
• "NB" appears when the NB function is turned ON.
$0 A UTOMATIC FREQUENCY CONTROL BUTTON [AFC]
(p. ??)
Click to turn the AFC (Automatic Frequency Control)
function ON or OFF.
• "AFC" appears when the AFC function is turned ON.
