15

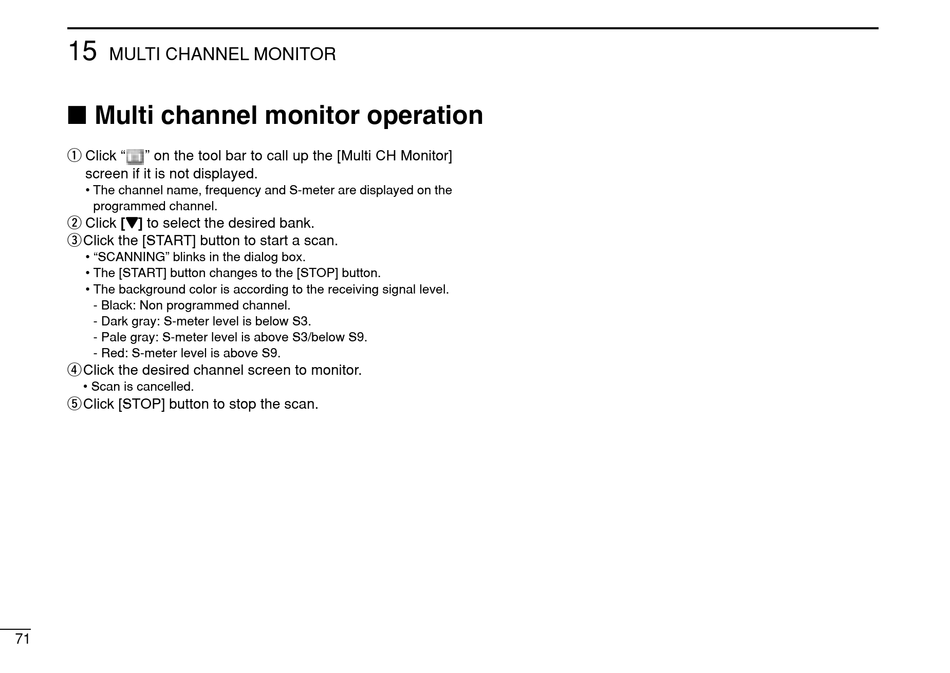

MULTI CHANNEL MONITOR
I Multi channel monitor operation
q Click "
" on the tool bar to call up the [Multi CH Monitor]
screen if it is not displayed.
• The channel name, frequency and S-meter are displayed on the
programmed channel.
w Click [Z Z ] to select the desired bank.
eClick the [START] button to start a scan.
• "SCANNING" blinks in the dialog box.
• The [START] button changes to the [STOP] button.
• The background color is according to the receiving signal level.
- Black: Non programmed channel.
- Dark gray: S-meter level is below S3.
- Pale gray: S-meter level is above S3/below S9.
- Red: S-meter level is above S9.
rClick the desired channel screen to monitor.
• Scan is cancelled.
tClick [STOP] button to stop the scan.
71
