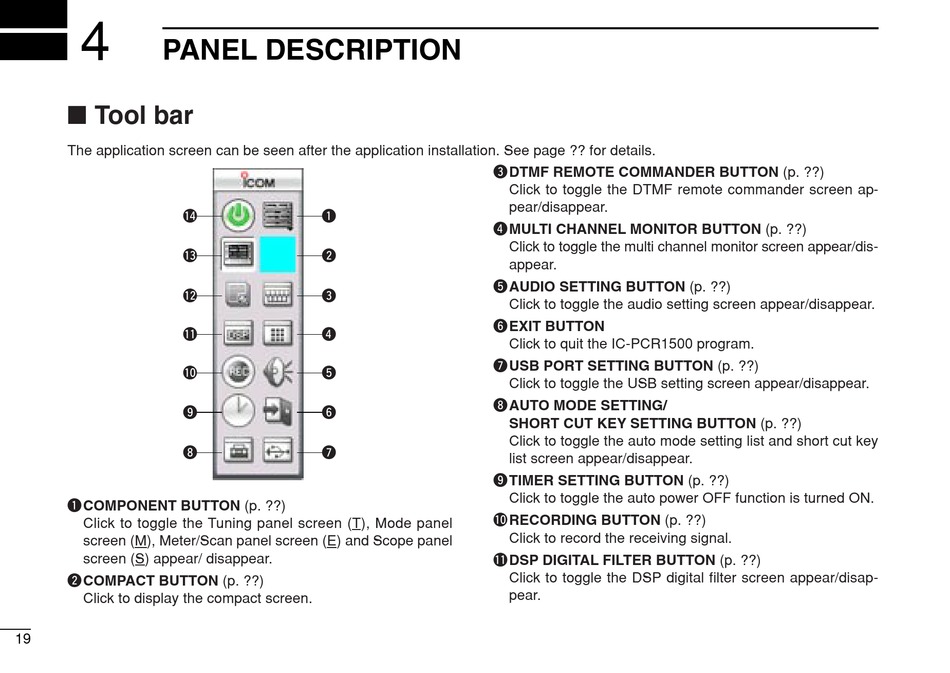

PANEL DESCRIPTION

I Tool bar
The application screen can be seen after the application installation. See page ?? for details.
!4
!3
!2
!1
!0
o
i
q COMPONENT BUTTON (p. ??)
Click to toggle the Tuning panel screen (T), Mode panel
screen (M), Meter/Scan panel screen (E) and Scope panel
screen (S) appear/ disappear.
w COMPACT BUTTON (p. ??)
Click to display the compact screen.
19
eDTMF REMOTE COMMANDER BUTTON (p. ??)
q
rMULTI CHANNEL MONITOR BUTTON (p. ??)
w
tAUDIO SETTING BUTTON (p. ??)
e
y EXIT BUTTON
r
u USB PORT SETTING BUTTON (p. ??)
t
iAUTO MODE SETTING/
y
u
o TIMER SETTING BUTTON (p. ??)
!0 RECORDING BUTTON (p. ??)
!1 DSP DIGITAL FILTER BUTTON (p. ??)
Click to toggle the DTMF remote commander screen ap-
pear/disappear.
Click to toggle the multi channel monitor screen appear/dis-
appear.
Click to toggle the audio setting screen appear/disappear.
Click to quit the IC-PCR1500 program.
Click to toggle the USB setting screen appear/disappear.
SHORT CUT KEY SETTING BUTTON (p. ??)
Click to toggle the auto mode setting list and short cut key
list screen appear/disappear.
Click to toggle the auto power OFF function is turned ON.
Click to record the receiving signal.
Click to toggle the DSP digital filter screen appear/disap-
pear.
