2

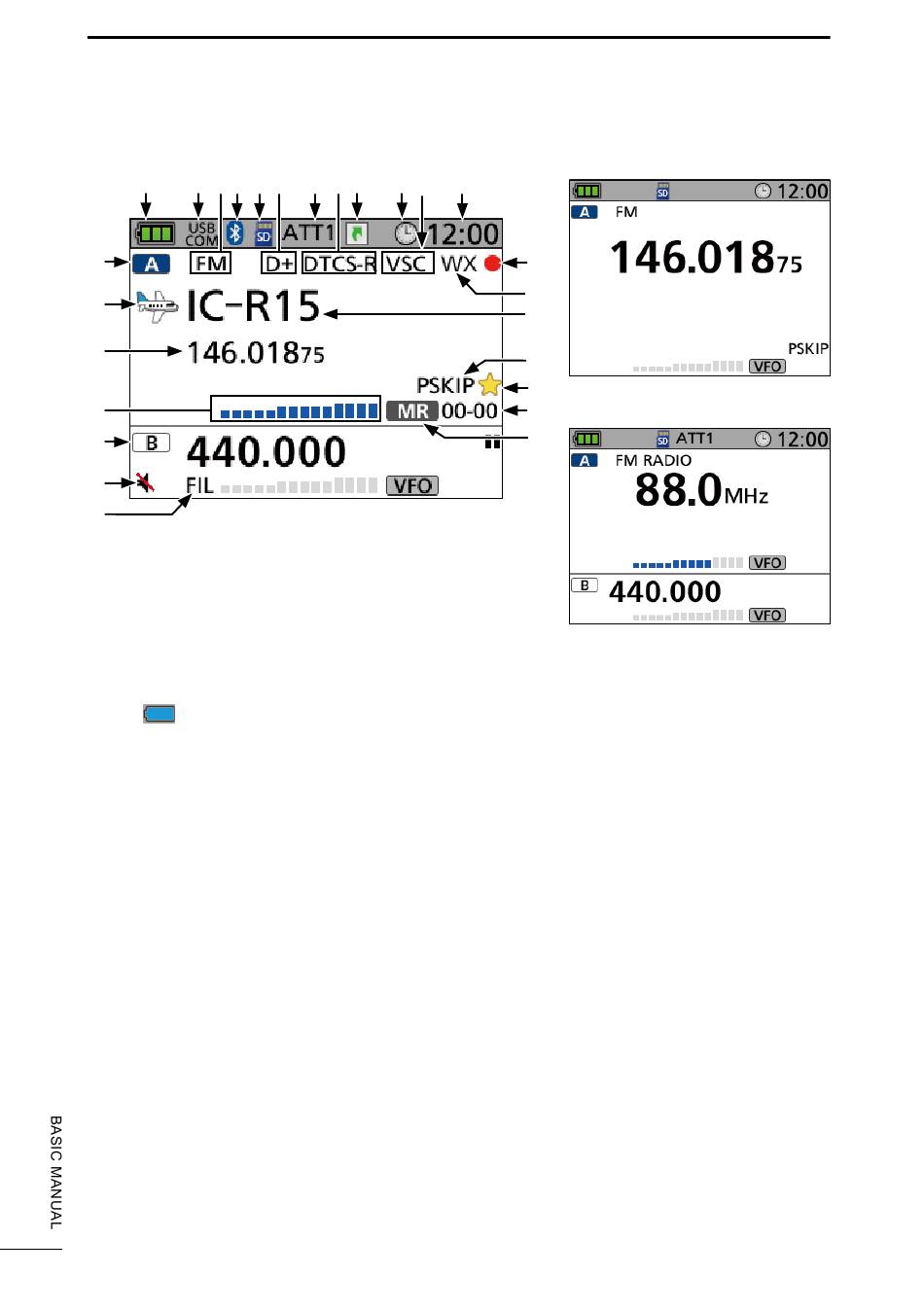

PANEL DESCRIPTION
■ Function display
1
2 3 4 5 6 7 8
26
25
24
23
22
21
20
Dual band display
1 BATTERY ICON
Displays the current capacity of the attached battery pack.
L "
" is displayed when the optional battery case is attached.
2 USB CONNECTION INDICATOR
Displayed when a USB device is connected through a USB cable, and "USB Connect"
is set to "Serialport." ([MENU] > SET > Function > USB Connect)
3 RECEIVE MODE ICONS
Displays the selected receive mode. (p. 15)
4 Bluetooth
ICON
®
Displayed when a Bluetooth device is connected. (p. 28)
5 microSD ICON (p. 4)
• Displayed when a microSD card is inserted.
• Blinks while accessing the microSD card.
6 DUPLEX ICONS
• D+:
Displayed during plus duplex operation.
• D–:
Displayed during minus duplex operation.
7 ATTENUATOR ICON
Displayed when the attenuator is ON. (p. 17)
8 TONE ICONS
Displayed when the tone function is ON.
9 SIMPLE MODE ICON
Displayed when operating in the Simple mode. (p. 34)
10 AUTO POWER OFF ICON
Displayed when the Auto Power OFF function is ON.
8
9
10 11 12
13
14
15
16
17
Single band display
18
19
FM Radio mode on the A band
