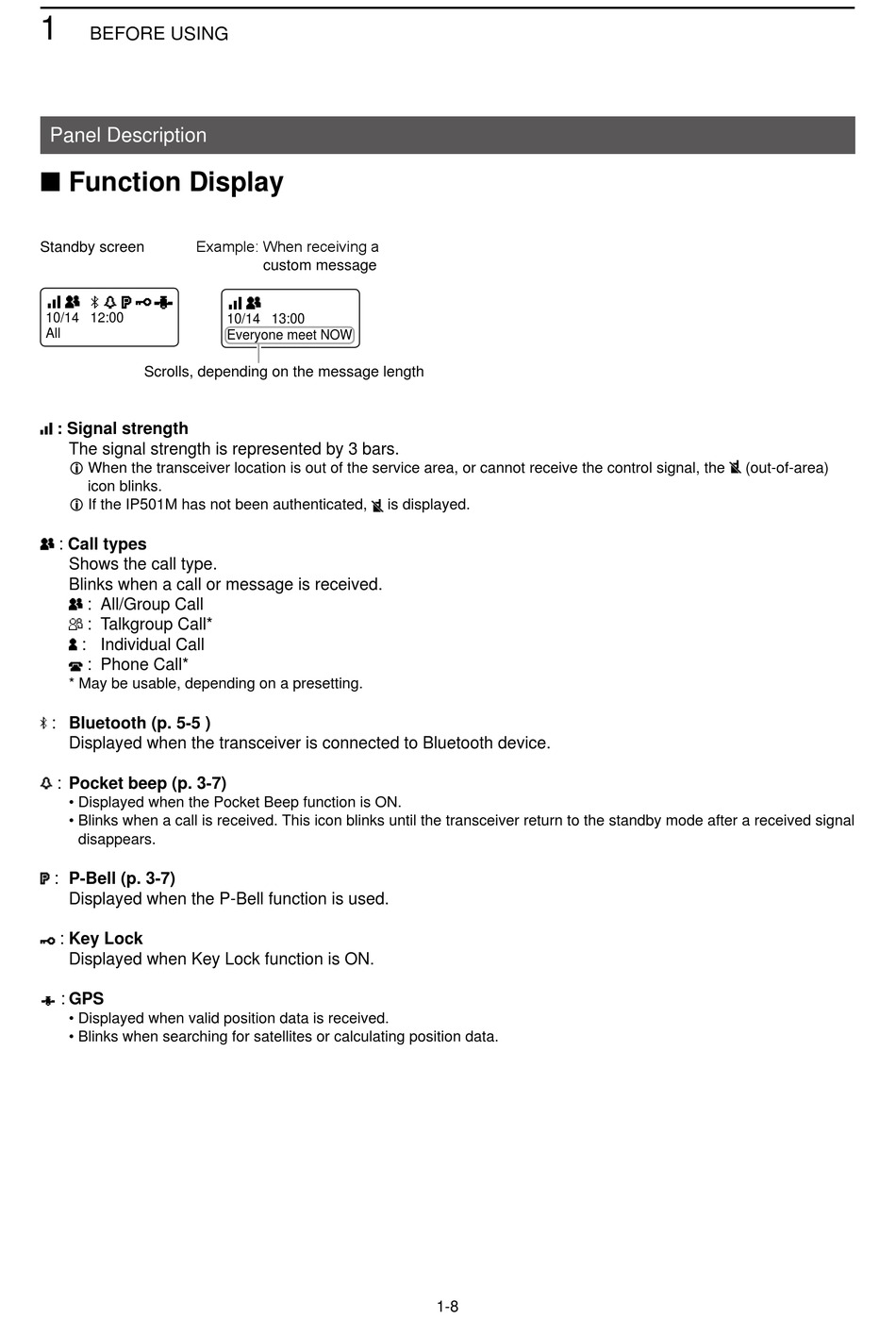

■ Function Display
Standby screen Example: When receiving a
10/14 12:00
All
Scrolls, depending on the message length
: Signal strength
The signal strength is represented by 3 bars.
L When the transceiver location is out of the service area, or cannot receive the control signal, the
icon blinks.
L If the IP501M has not been authenticated,
: Call types
Shows the call type.
Blinks when a call or message is received.
: All/group Call
: Talkgroup Call*
: Individual Call
: Phone Call*
* May be usable, depending on a presetting.
: Bluetooth (p. 5-5 )
Displayed when the transceiver is connected to Bluetooth device.
: Pocket beep (p. 3-7)
• Displayed when the Pocket Beep function is On.
• Blinks when a call is received. This icon blinks until the transceiver return to the standby mode after a received signal
disappears.
: P-Bell (p. 3-7)
Displayed when the P-Bell function is used.
: Key Lock
Displayed when Key Lock function is On.
: GPS
• Displayed when valid position data is received.
• Blinks when searching for satellites or calculating position data.
custom message
10/14 13:00
everyone meet nOW
is displayed.
1-8
(out-of-area)
