PANEL DESCRIPTION

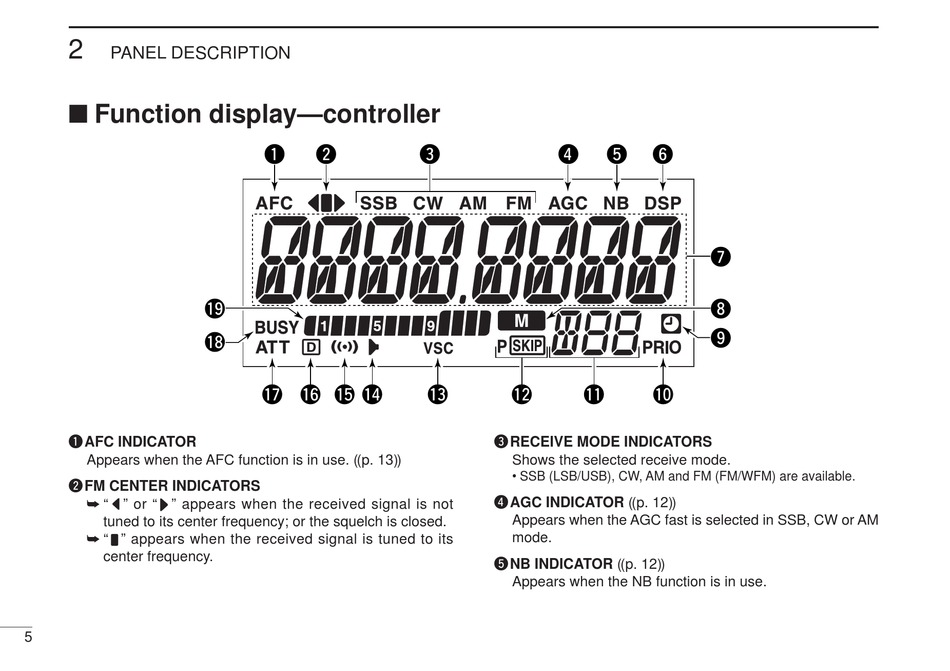

■ Function display—controller
q AFC INDICATOR
Appears when the AFC function is in use. ((p. 13))
w FM CENTER INDICATORS
➥ " " or " " appears when the received signal is not
tuned to its center frequency; or the squelch is closed.
➥ " " appears when the received signal is tuned to its
center frequency.
5
q
w
!9
!8
!7 !6 !5 !4
e
r
!3
!2
!1
e RECEIVE MODE INDICATORS
Shows the selected receive mode.
• SSB (LSB/USB), CW, AM and FM (FM/WFM) are available.
r AGC INDICATOR ((p. 12))
Appears when the AGC fast is selected in SSB, CW or AM
mode.
t NB INDICATOR ((p. 12))
Appears when the NB function is in use.
t
y
u
i
o
!0
