Mounting the protective glass to the franking machine
Transport bar
Mounting the hand feed tray
Appendix – Moving the PostBase One to another location

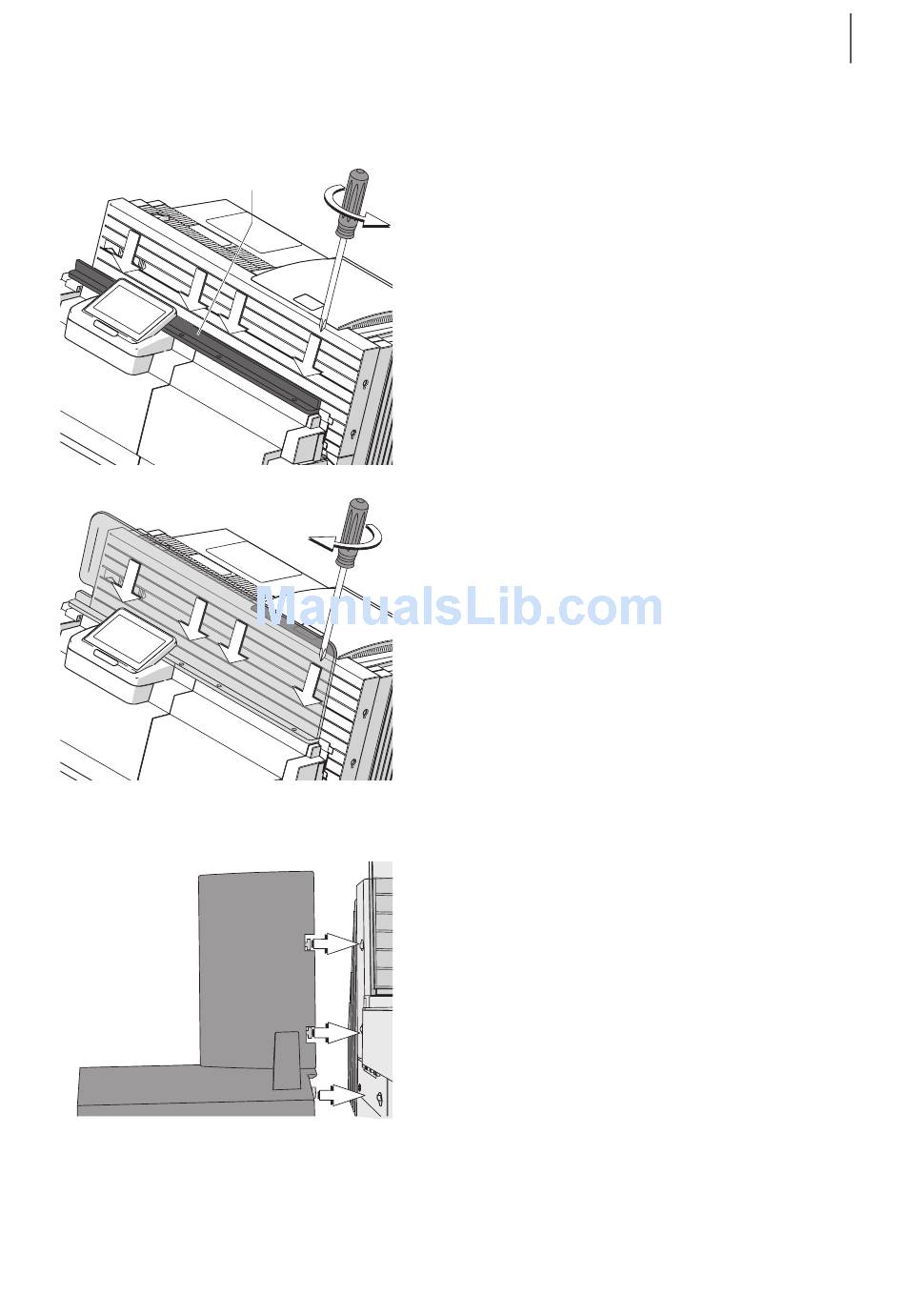

Remove the bar that was attached for trans-
port:
• Remove the four screws.
• Remove the transport bar.
• Fasten the protective glass to the housing
of the franking machine with the four
screws.
If you use PostBase One with no additional
components:
• Mount the hand feed tray on the left side of
the franking machine's housing.
Insert the three pegs into the key holes of
the side wall of the franking machine.
• Push the hand feed tray backwards as far
as it will go.
167
