PostBase One Franking System

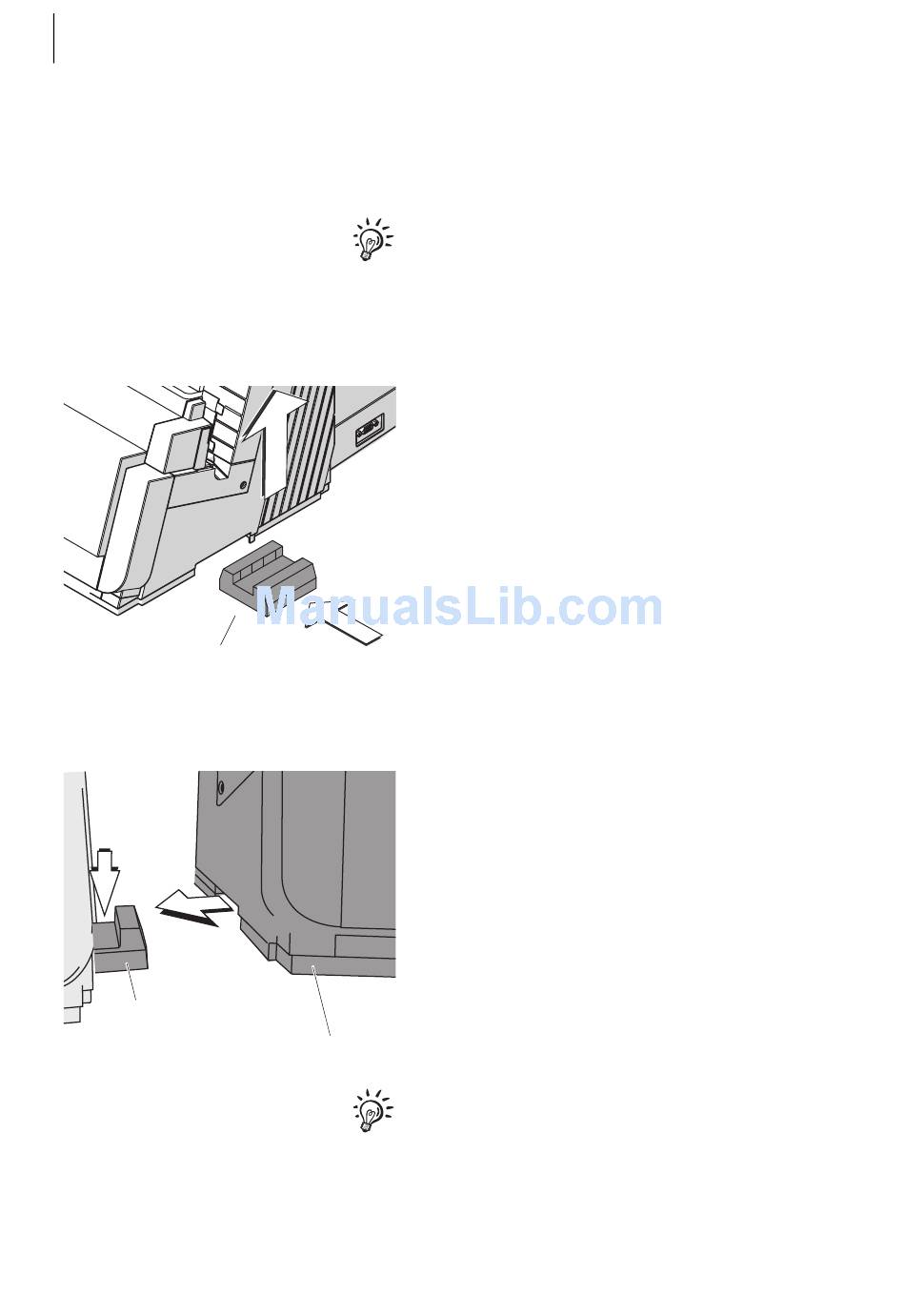

Insert housing connector
Housing connector
Coupling feeder – sealer – dynamic scale – franking machine
Housing connector
Franking machine
• Place the PostBase One and its optional
components on a firm, level, low vibration
horizontal base.
Please refer to page 177 for the standing sur-
face values of the system in different config-
urations.
The components of the franking system are
mechanically coupled and thus fixated with
regard to their position in relation to one
another by means of housing connectors.
• Slightly lift the franking machine on its right
side and slide the connector into the clear-
ance of the housing.
On the dynamic scale and the feeder:
• Insert the connectors in the same way into
the right side wall.
• Slightly lift the sealer on its left side, move
it close to the feeder and position it on the
connector.
• Slightly lift the dynamic scale on its left
side, move it close to the sealer and posi-
tion it on the connector.
• Slightly lift the franking machine on its left
side, move it close to the dynamic scale,
and position it on the connector.
If your franking system does not comprise all
components mentioned, couple those you
use in the described way.
