Reset; Heave Offset - Advanced Navigation Spatial FOG Dual Reference Manual

11.8.8

Reset

The reset button causes the system to perform a power cycle as if the unit had the
power removed and reapplied. The factory restore button causes the system to erase
all settings and restore factory defaults. It also erases the hot start data so that the
system is forced to perform a cold start.
11.8.9

Heave Offset

The heave offset dialogue allows the user to move the heave measurement points to
different positions on the vessel. When the values are zero the measurement point is
the centre of the Spatial FOG Dual unit. This can be offset to a different position on the
ship by entering the offset value from the centre of the Spatial FOG Dual unit to the
desired position in the body co-ordinate frame (X positive forwards, Z positive down).
Please note that these values only apply to the Heave Packet. NMEA, TSS and Simrad
heave is not affected by the values in this dialogue which are always measured at the
centre of the Spatial FOG Dual unit.
Spatial FOG Dual Reference Manual

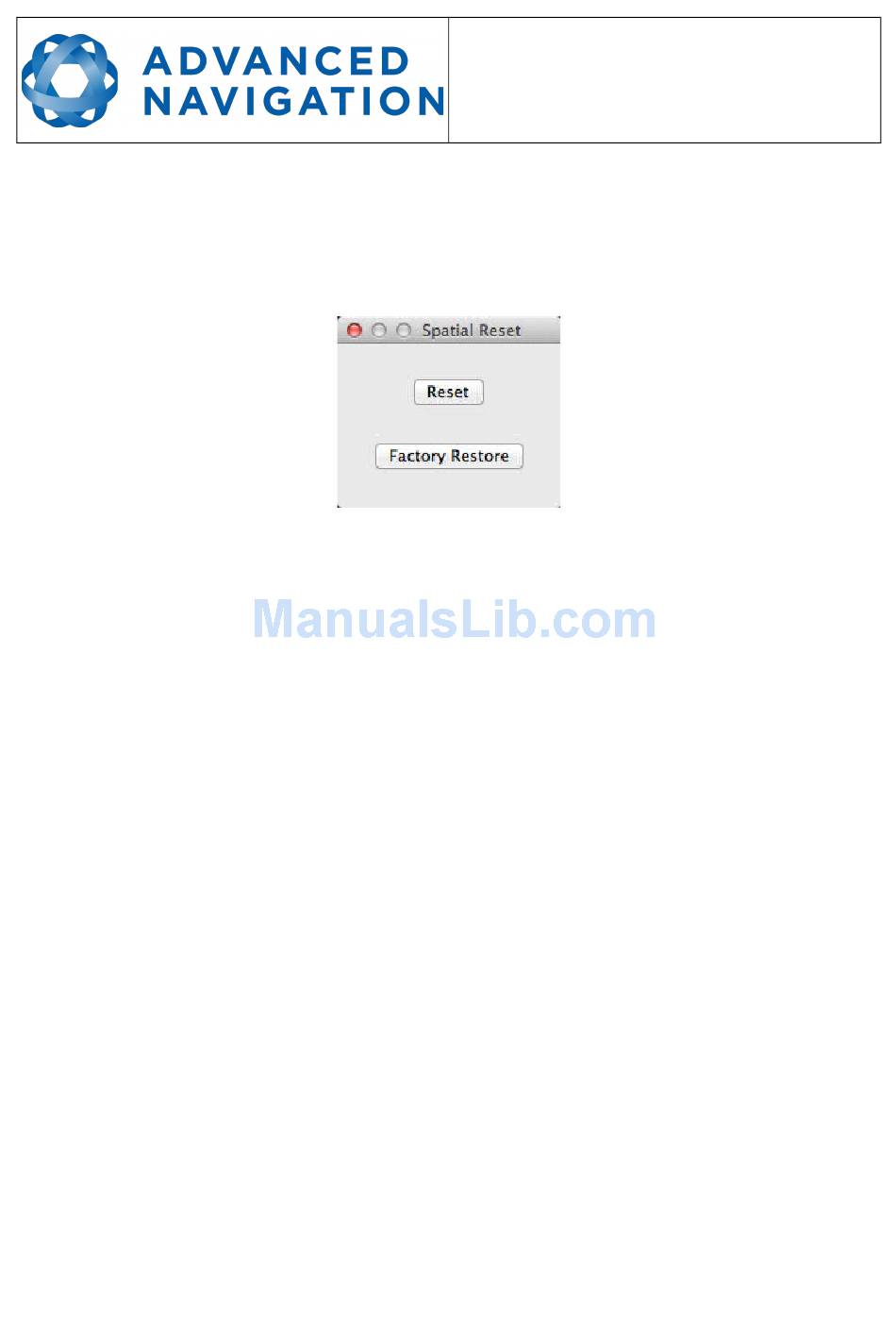

Illustration 53:
Screenshot of Spatial
FOG Manager reset
dialogue
Page 71 of 138
Version 1.0
26/06/2015
