8.9

Power Consumption

1000
900
800
700
600
500
400
300
200
100
0
5

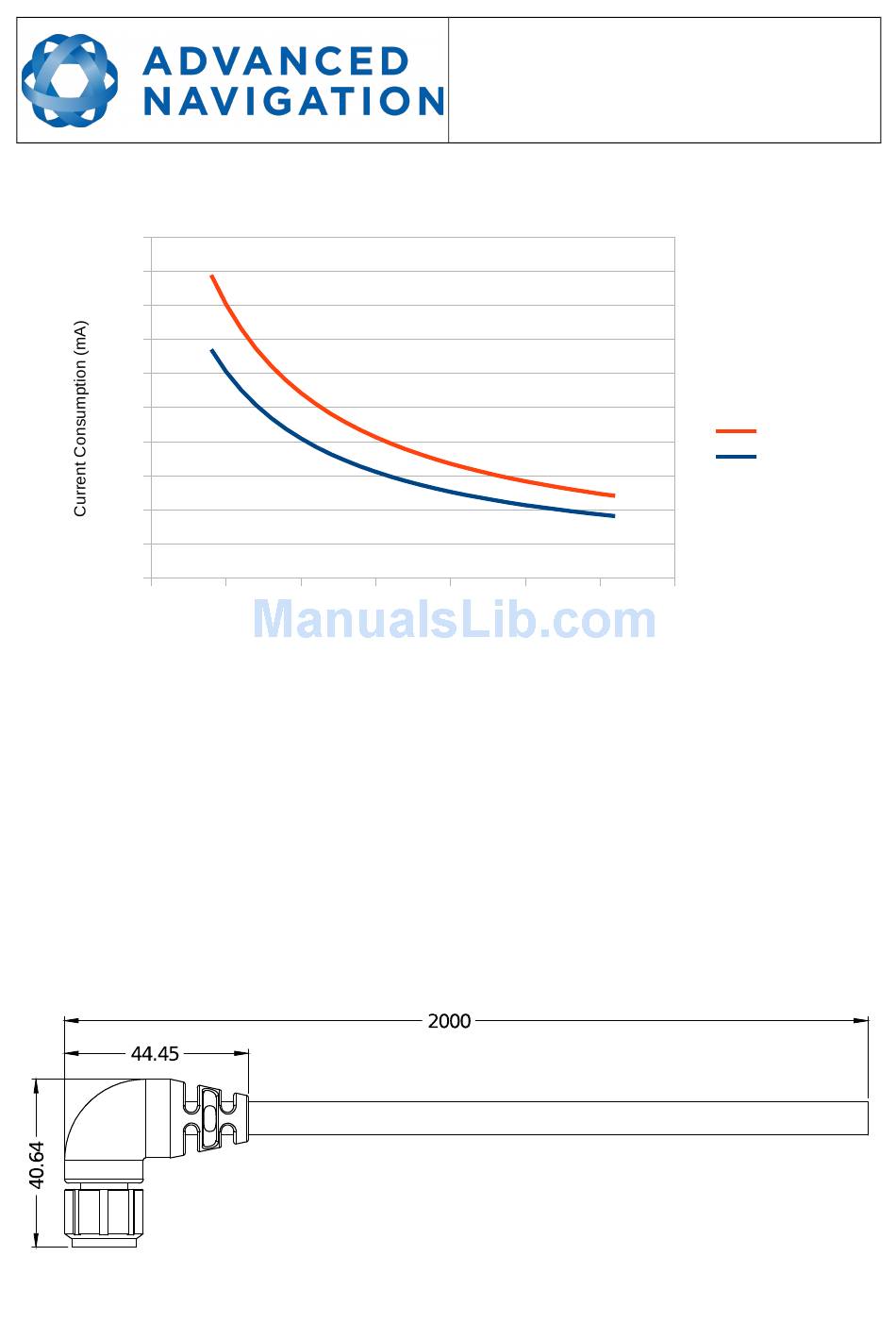

Illustration 11: Maximum and typical current consumption across operating voltage
8.10

Connector Pin-out

Power supply and signal connections are made through a 13 pin Glenair mighty mouse
series 801 connector. The Glenair part number is 801-007-16M8-13SA. The connector
provides a reliable and rugged connection to Spatial FOG Dual under demanding
conditions and is rated to IP68 in the mated condition. Connection to Spatial FOG Dual
may be made with the Spatial FOG Dual evaluation cable harness, which provides a
pre-terminated 2 metre cable assembly with all signals broken out to industry standard
connectors, see section 8.11. Advanced Navigation also supplies connectors with 2
metres of unterminated cable, see Illustration 12. Custom lengths are available on
request.
Illustration 12: Spatial FOG Dual connector with 2 metres of unterminated cable
10 15 20
Voltage (V)
Spatial FOG Dual Reference Manual
Page 27 of 138
Version 1.0
26/06/2015
25 30 35
Maximum
Typical
40
