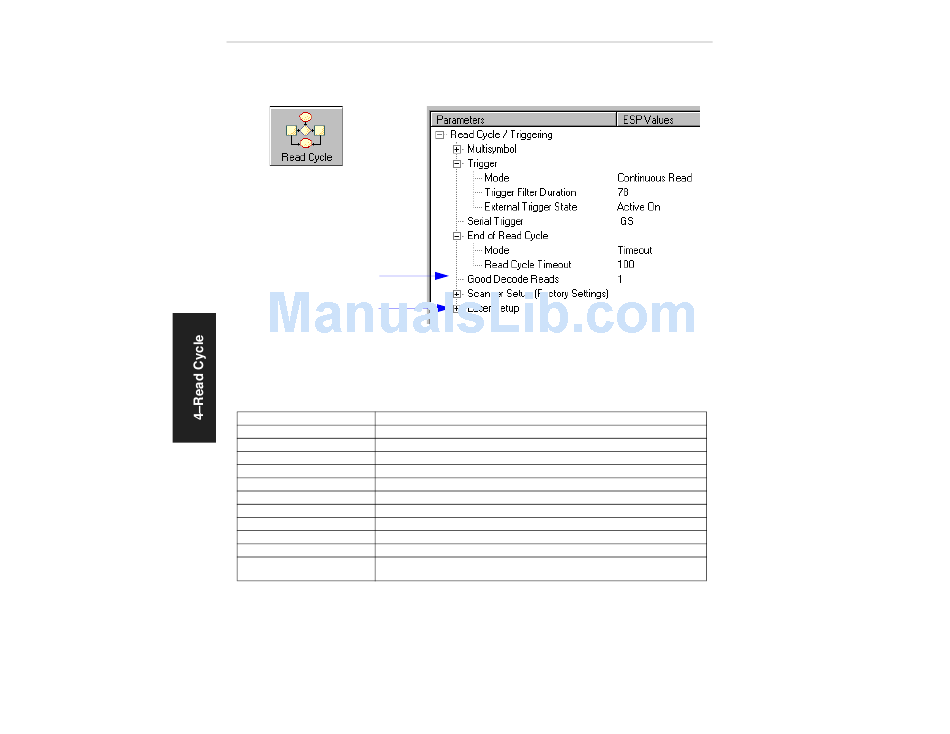

Read Cycle by ESP

Click this Button to bring
up the Read Cycle menu.
To change a setting,
double-click the
setting and use your
cursor to scroll
through the options.
To open nested options,
single-click the + box.

Read Cycle by Serial Command

Command Title
Multisymbol <KLnumber of symbols,multisymbol separator>
<Kgtrigger mode,trigger filter duration>
Trigger Mode
External Trigger State <Kjexternal trigger state>
Serial Trigger <Kiserial trigger character>
End of Read Cycle <Khend of read cycle,read cycle timeout>
Good Decode Reads <Kmgood decode reads>
<KDgain,AGC sampling,AGC min,AGC max>
Automatic Gain Control
Transition Counter <KHsymbol detect status,transition counter>
<
Scan Speed KEscan speed
Scanner Type <KPdensity>
<KClaser
Laser Controls
tion>
MS-820 Industrial Bar Code Scanner User's Manual
4-2
