Step 1 — Hardware Required
(Refer to figure 1-1.)
Item Part Number
1 FIS-0820-XXXXG
2
3
61-300026-03
4 98-000014-02
5 61-000011-02
97-100004-15
6
(90-264 VAC, 24VDC)
7 99-000017-01
a. With either a terminal communications program or Microscan's ESP which runs under Windows
operating system, Windows-98 or higher, including Windows NT and Windows XP.
b. If using another host cable, make certain it does not have RTS/CTS connected to the host.
Caution: If using your own power supply, be certain that it is wired correctly and sup-
plies voltage is within the +10 to 28 VDC limits. Incorrect wiring or voltage can cause
software or equipment failures.
2

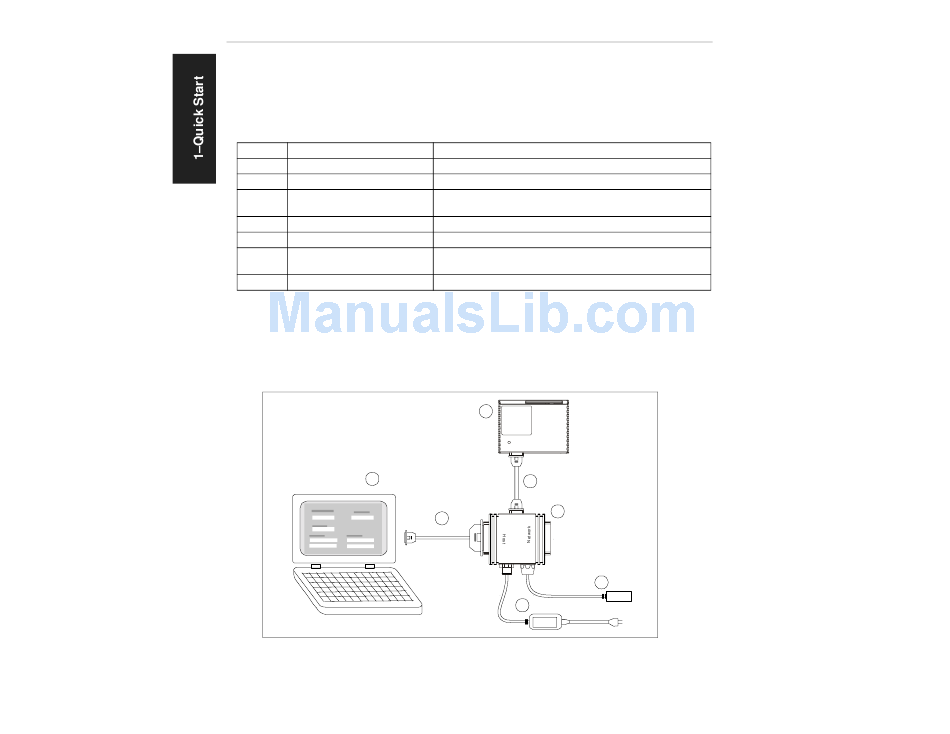

Figure 1-1 Hardware Configuration

MS-820 Industrial Bar Code Scanner User's Manual
1-2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Description
MS-820 scanner
a
A host computer
DB-25 Null modem configuration cable plug to DB-9
b
socket, 6 ft. or a 25-pin cable to the 25-pin port
IB-131 interface kit including (5) interface cable
Null modem configuration cable
Power supply
Optional object detector
1
5
4
3 Scanner
Power Trigger
7
6
