I/O Parameters by ESP

I/O Parameters by ESP

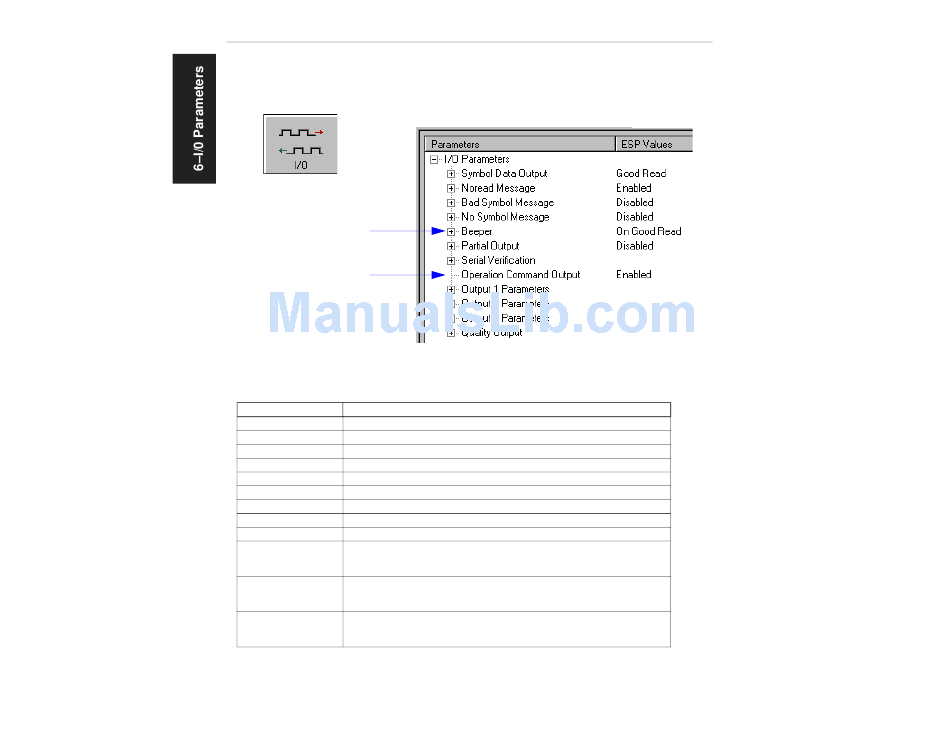

Click this button to bring up the
I/O Parameters menu.
To open nested options,
single-click the +.
To change a setting,
double-click the
setting and use your
cursor to scroll
through the options.
I/O Parameters by Serial Command
Command Title
Symbol Data Output <Kl symbol data output mode,when to output>
Noread Message <Kk status,message>
Bad Symbol Message <K' status,message>
status,message>
No Symbol Message <KN
a
No Object Message <KO status,message>
Laser ON/OFF Status <KClaser on/off status>
,
Beeper <Ku status volume>
Partial Output <KY status,start postion,length>
Serial Verification <KS command echo status,beep status,control/hex output>
<Kv output on,active state,pulse width,output mode,trend analysis
Output 1 mode,trigger evaluation period,number to output on,reads per trigger
threshold>
<Kw output on,active state,pulse width,output mode,trend analysis
Output 2 mode,trigger evaluation period,number to output on,reads per trigger
threshold>
<K' output on,active state,pulse width,output mode,trend analysis
Output 3 mode,trigger evaluation period,number to output on,reads per trigger
threshold>
a. For MS-710s with MS-Sensors.
MS-820 Industrial Bar Code Scanner User's Manual
6-2
