Enter Master Symbol Data

Definition: Allows you to enter master symbol data for a specific master symbol
index number (1 to 10) provided the index number is not larger than the
number of symbols enabled by the Master Symbol Database Size (see
page 11-11). For example, if Master Symbol Database Size is set to
2, you will not be able to enter data for symbols 3 through 10.
ESP: 1. Set the number of master symbols you want to create in
Symbol Database
2. Double-click

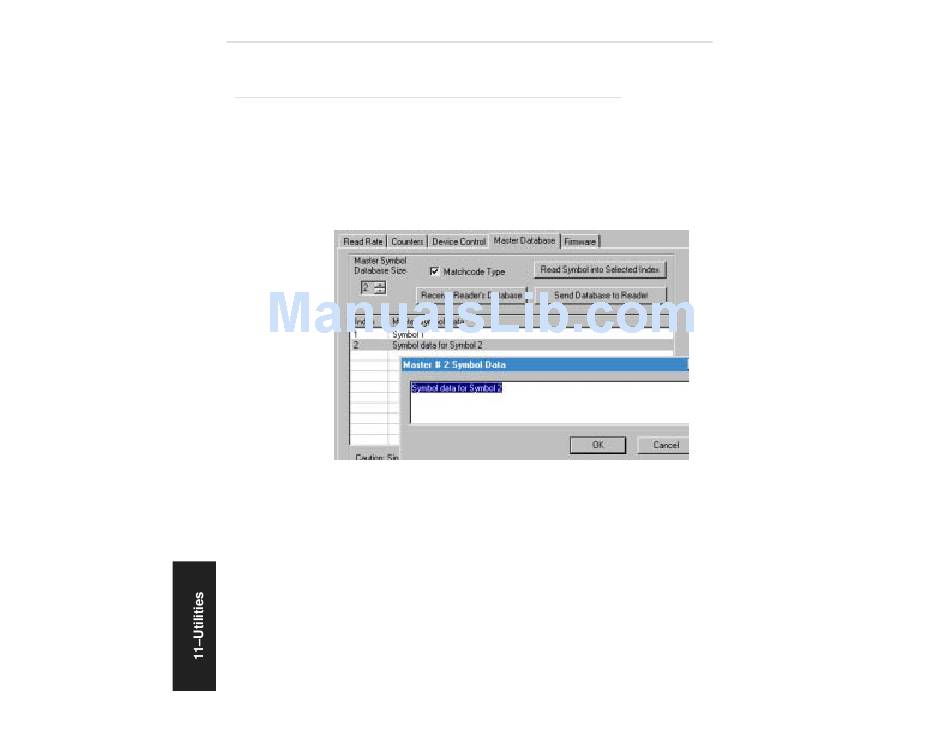

3. Copy or type data into the Master Symbol dialog box and click OK.
4. Click Send Database to Reader
Serial Cmd: <Mmaster symbol number,master symbol
Default: 1
Options: 1 to 10 (any combination of ASCII text up to the maximum in
2).
For example, to enter data for master symbol 9, after making certain that
master symbol database size is enabled for 9 or more symbols, send
<M9,data>.
Caution: Since the total number of characters available for the master symbol data-
base is 2045, changes to the Master Symbol Database Size will re-allocate the num-
ber of characters available for each master symbol and could cause existing master
symbols to be deleted (except master symbol #1 unless it also exceeds the size limitation.)
