8.3.2

ARM AXD (ARM Developer Suite, ADS)

8.3.2.1 Software version
The JLinkRDI.dll has been tested with ARM's AXD version 1.2.0 and 1.2.1.
There should be no problems with other versions of ARM's AXD. All screenshots are
taken from ARM's AXD version 1.2.0.
8.3.2.2 Configuring to use J-Link RDI

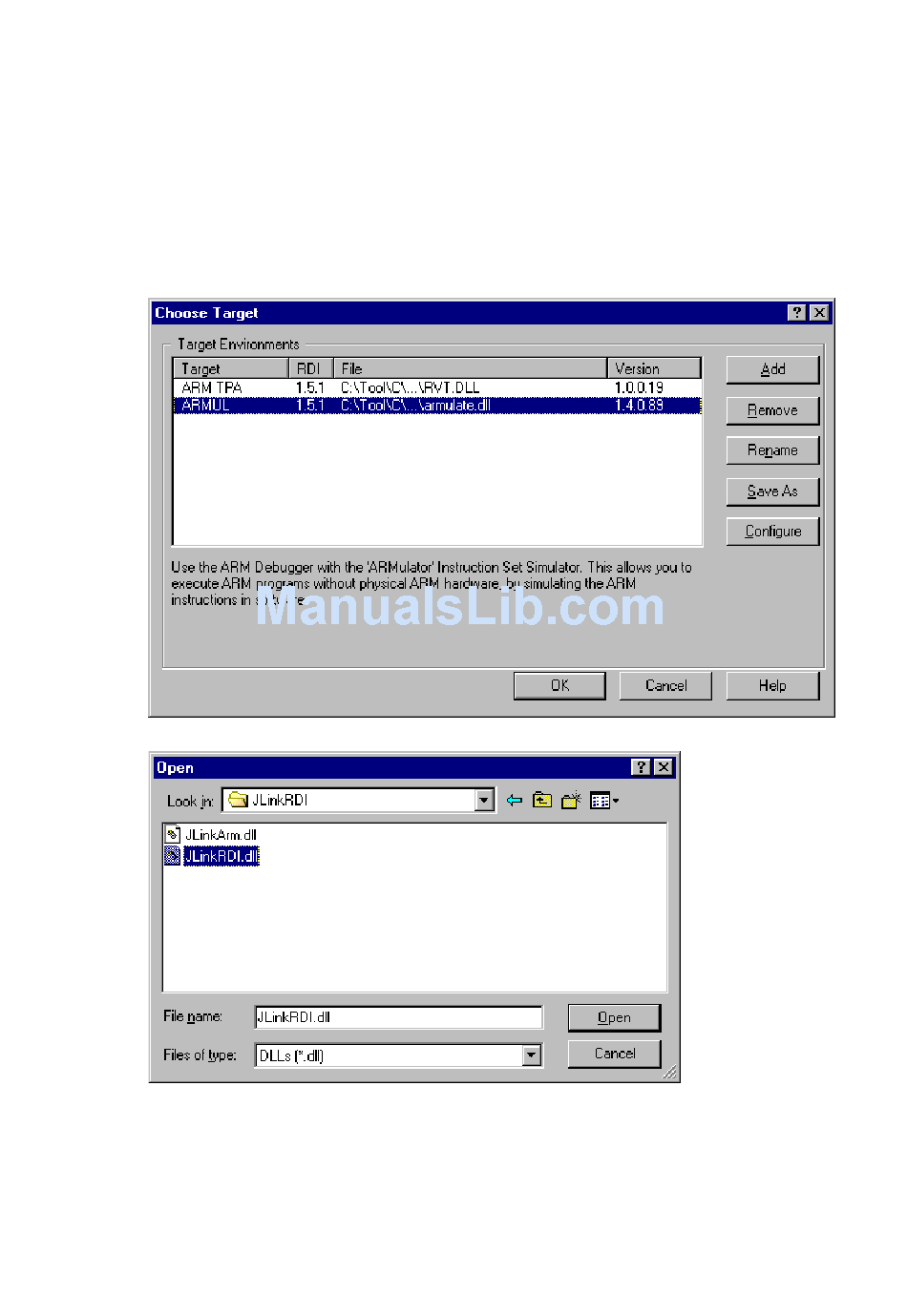

1. Start the ARM debugger and select Options | Configure Target... . This opens the
Choose Target dialog box:
2. Press the Add Button to add the JLinkRDI.dll .
