8.4.4.1 General tab

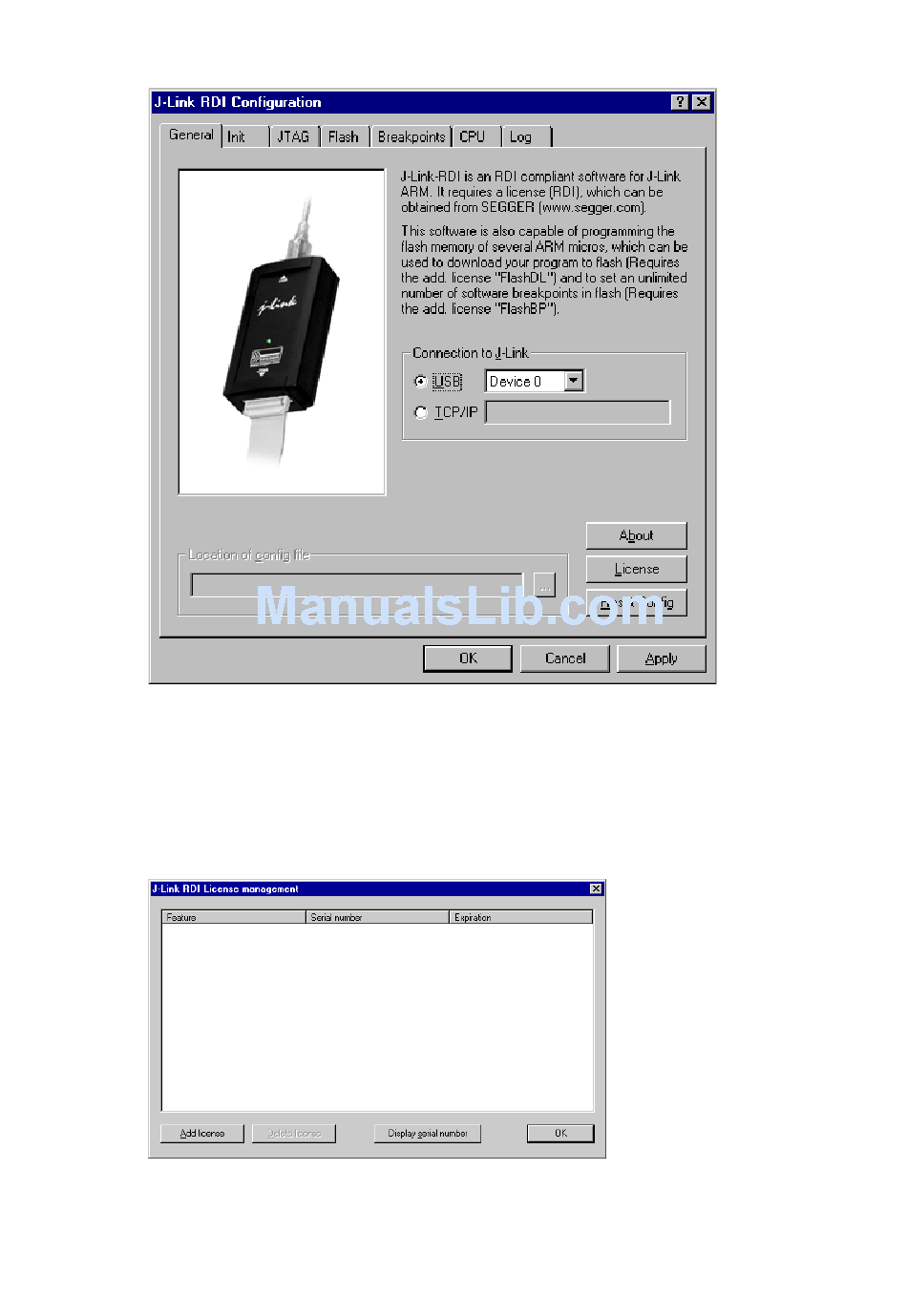

Connection to J-Link
This setting allows the user to configure how the DLL should connect to the J-Link.
Some J-Link models also come with an Ethernet interface which allows to use an
emulator remotely via TCP/IP connection.
License (J-Link RDI License managment)
1. The License button opens the J-Link RDI License management dialog. J-Link
RDI requires a valid license.
2. Click the Add license button and enter your license. Confirm your input by click-
