Target supply current
LOW level input voltage (V
HIGH level input voltage (V
LOW level output voltage (V
load of 10 kOhm
HIGH level output voltage (V
load of 10 kOhm
Table 1.9: Flasher ARM specifications

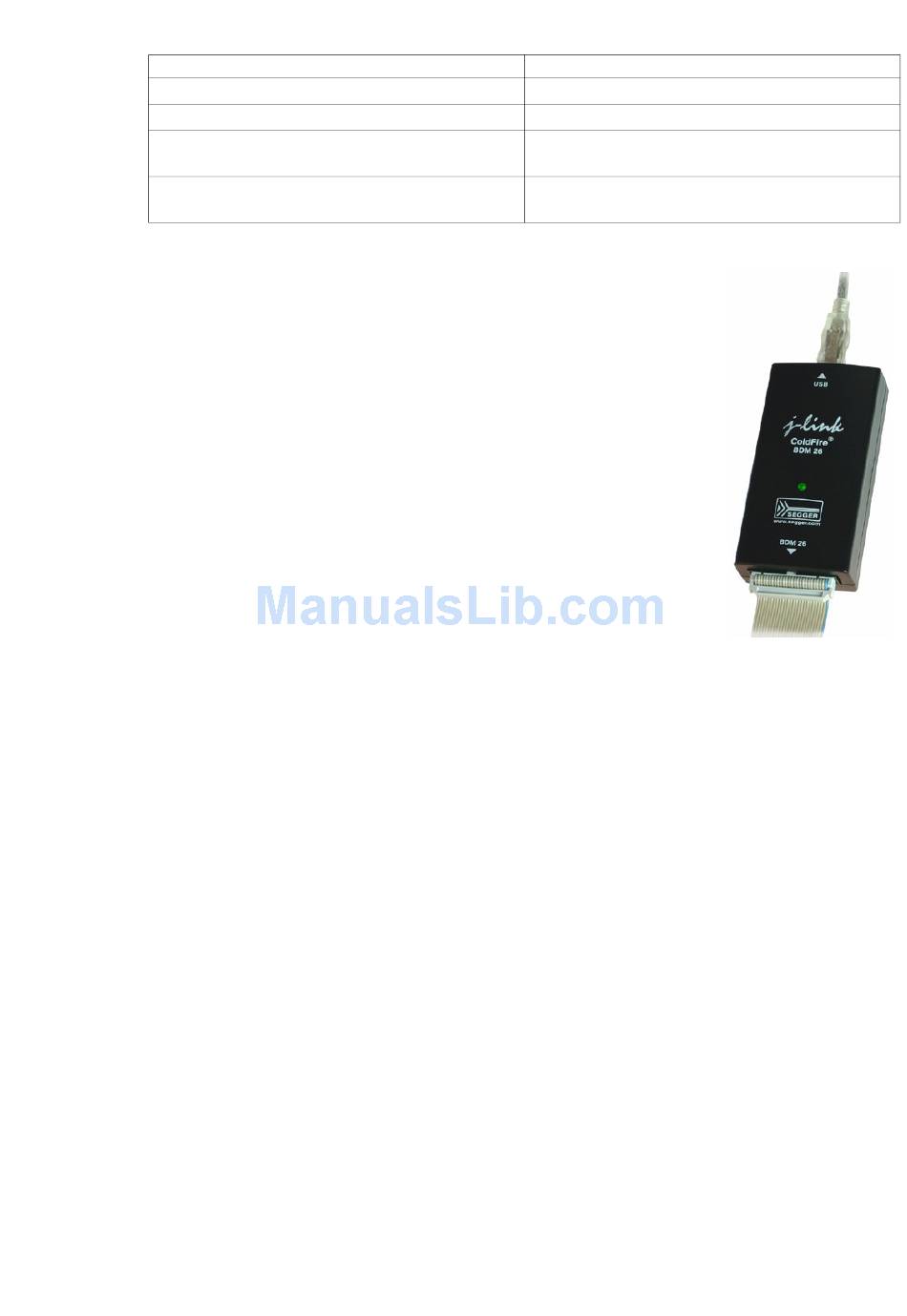

1.3.10 J-Link ColdFire

J-Link ColdFire is a BDM emulator designed for ColdFire® cores.
It connects via USB to a PC running Microsoft Windows 2000,
Windows XP, Windows 2003, or Windows Vista. J-Link ColdFire
has a built-in 26-pin BDM connector, which is compatible to the
standard 26-pin connector defined by Freescale. For more infor-
mation about J-Link ColdFire BDM 26, please refer to UM08009,
J-Link ColdFire BDM26 User's Guide.
J-Link / J-Trace (UM08001)
Max. 300mA
)
Max. 0.8V
IL
)
Min. 2.0V
IH
) with a
OL
Max. 0.5V
) with a
OH
Min. 2.85V
