Getting started with J-Link and ARM DS-5

J-Link supports ARM DS-5 Development via the RDDI protocol.
For commerically using J-Link via RDDI in ARM DS-5, an RDI/RDDI license is
required. J-Link models which come with an RDI license, can also be used via RDDI.
RDDI can be evaluated free of charge.
In order to use J-Link in ARM DS-5 Development Studio, the RDDI DLL in DS-5 needs
to be replaced by the SEGGER version of this DLL. The SEGGER version of the RDDI
still allows using ARM's DSTREAM in DS-5. After installing the J-Link software and
documentation package, the J-Link DLL Updater is started which allows easily updat-
ing the RDDI DLL in DS-5. An backup of the original DLL is made automatically.
4.8.1

Replacing the RDDI DLL manually

If J-Link DLL Updater is unable to find a DS-5 installation and does not list it for
updating, the RDDI DLL can always be replaced manually. For more information
about how
$JLINK_INST_DIR$\RDDI\ManualInstallation.txt.
4.8.2

Using J-Link in DS-5 Development Studio

Please follow the following steps, in order to use J-Link in DS-5, after replacing the
RDDI DLL accordingly:
• Connect J-Link and target.
• Open ARM DS-5.
• Open DS-5 Project for target.
• Open Debug Configurations...
• Select DS-5 Debugger on the left side.
• Press New button.
• In the Connection tab, select The target from the device database, Bare Metal
Debug, Debug via DSTREAM/RVI.
• Click on the Browse... button right to the Text box at the bottom Connection.

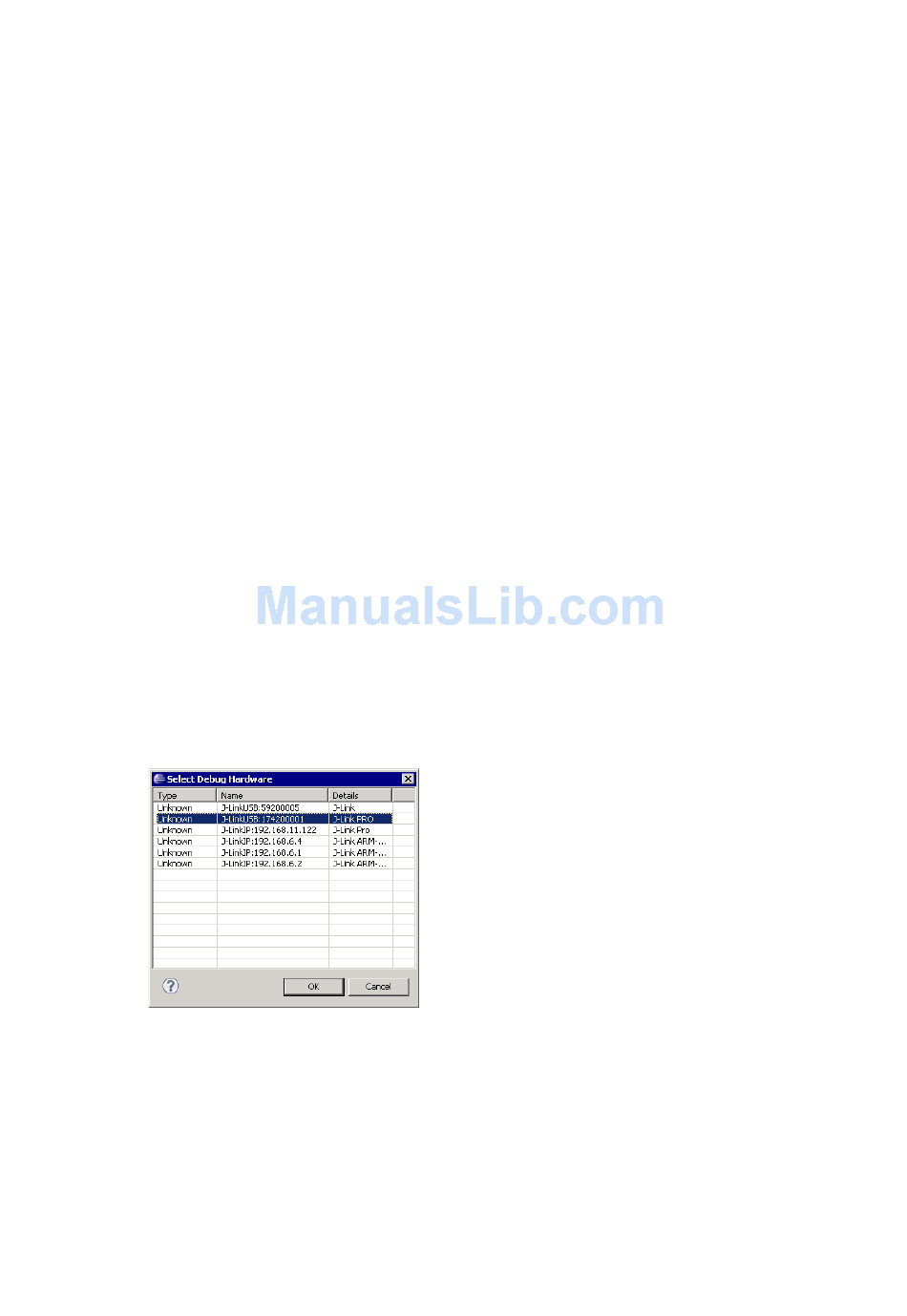

• In the Dialog select the J-Link which is connected to the target (e.g.
JLinkUSB:174200001).
• Click OK.
• Add the device name to the connection string (e.g. JLinkUSB:174200001:Device
J-Link / J-Trace (UM08001)
to manually update the RDDI DLL,
