5.7

J-Link control panel

Since software version V3.86 J-Link the J-Link control panel window allows the user
to monitor the J-Link status and the target status information in real-time. It also
allows the user to configure the use of some J-Link features such as flash download,
flash breakpoints and instruction set simulation. The J-Link control panel window can
be accessed via the J-Link tray icon in the tray icon list. This icon is available when
the debug session is started.
To open the status window, simply click on the tray icon.
5.7.1

Tabs

The J-Link status window supports different features which are grouped in tabs. The
organization of each tab and the functionality which is behind these groups will be
explained in this section

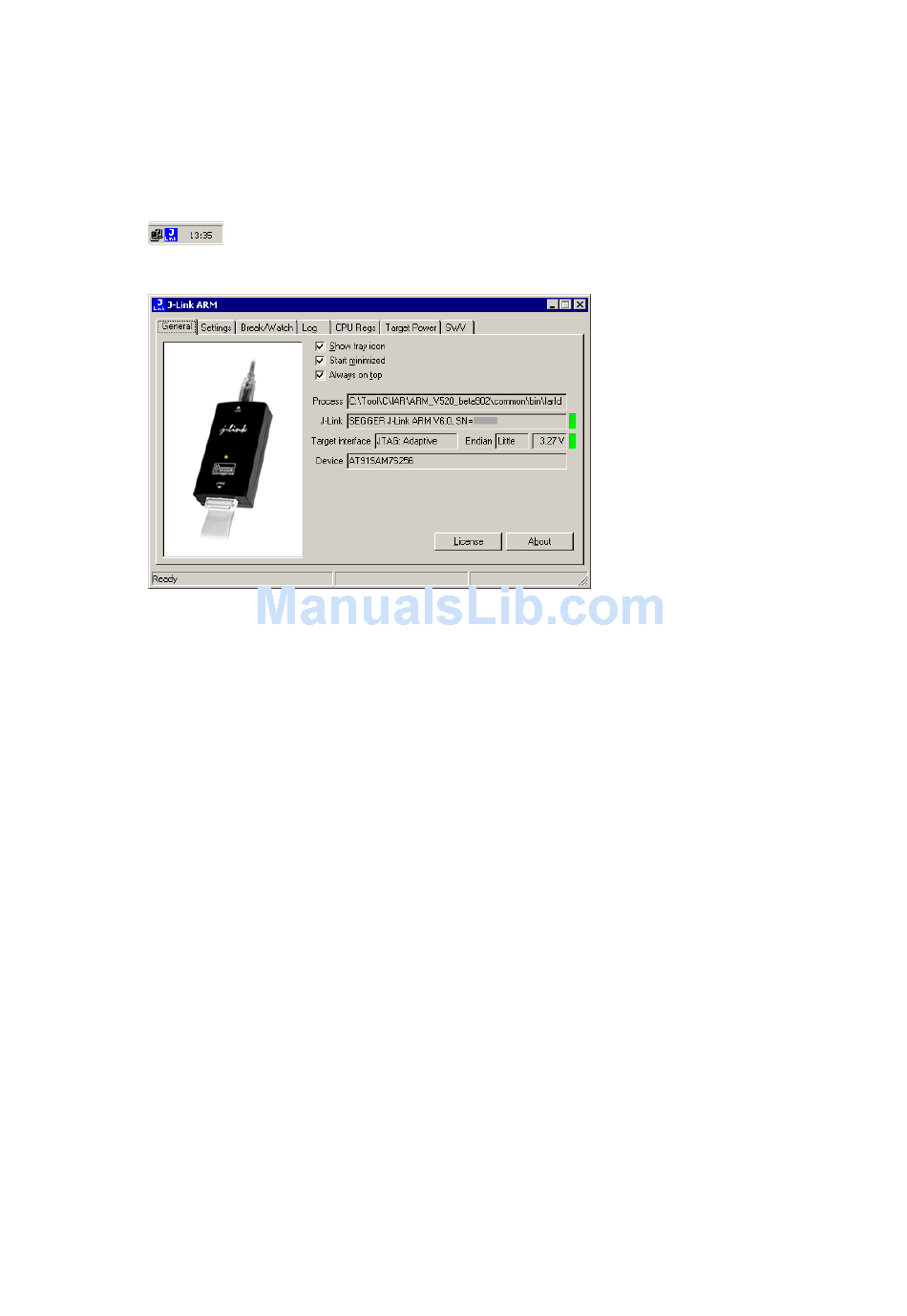

5.7.1.1 General
In the General section, general information about J-Link and the target hardware
are shown. Moreover the following general settings can be configured:
• Show tray icon: If this checkbox is disabled the tray icon will not show from the
next time the DLL is loaded.
• Start minimized: If this checkbox is disabled the J-Link status window will show
up automatically each time the DLL is loaded.
• Always on top: if this checkbox is enabled the J-Link status window is always
visible even if other windows will be opened.
The general information about target hardware and J-Link which are shown in this
section, are:
• Process: Shows the path of the file which loaded the DLL.
• J-Link: Shows OEM of the connected J-Link, the hardware version and the Serial
number. If no J-Link is connected it shows "not connected" and the color indica-
tor is red.
• Target interface: Shows the selected target interface (JTAG/SWD) and the cur-
rent JTAG speed. The target current is also shown. (Only visible if J-Link is con-
nected)
• Endian: Shows the target endianess (Only visible if J-Link is connected)
• Device: Shows the selected device for the current debug session.
• License: Opens the J-Link license manager.
• About: Opens the about dialog.
