12.3

Setup for various debuggers

The J-Link RDI software is an ARM Remote Debug Interface (RDI) for J-Link. It makes it
possible to use J-Link with any RDI compliant debugger. Basically, J-Link RDI consists of
a additional DLL ( JLinkRDI.dll ) which builds the interface between the RDI API and the
normal J-Link DLL. The JLinkRDI.dll itself is part of the J-Link Software and Documentation
Package.
Please refer to
to get started with any IDE officially supported by J-Link / J-Trace. If official support is not
implemented natively but via RDI, the RDI setup procedure will also be explained there.
In the following, the RDI setup procedure for a few not officially supported IDEs is
explained.
12.3.1

ARM AXD (ARM Developer Suite, ADS)

Software version
The JLinkRDI.dll has been tested with ARM's AXD version 1.2.0 and 1.2.1. There should
be no problems with other versions of ARM's AXD. All screenshots are taken from ARM's
AXD version 1.2.0.
Configuring to use J-Link RDI

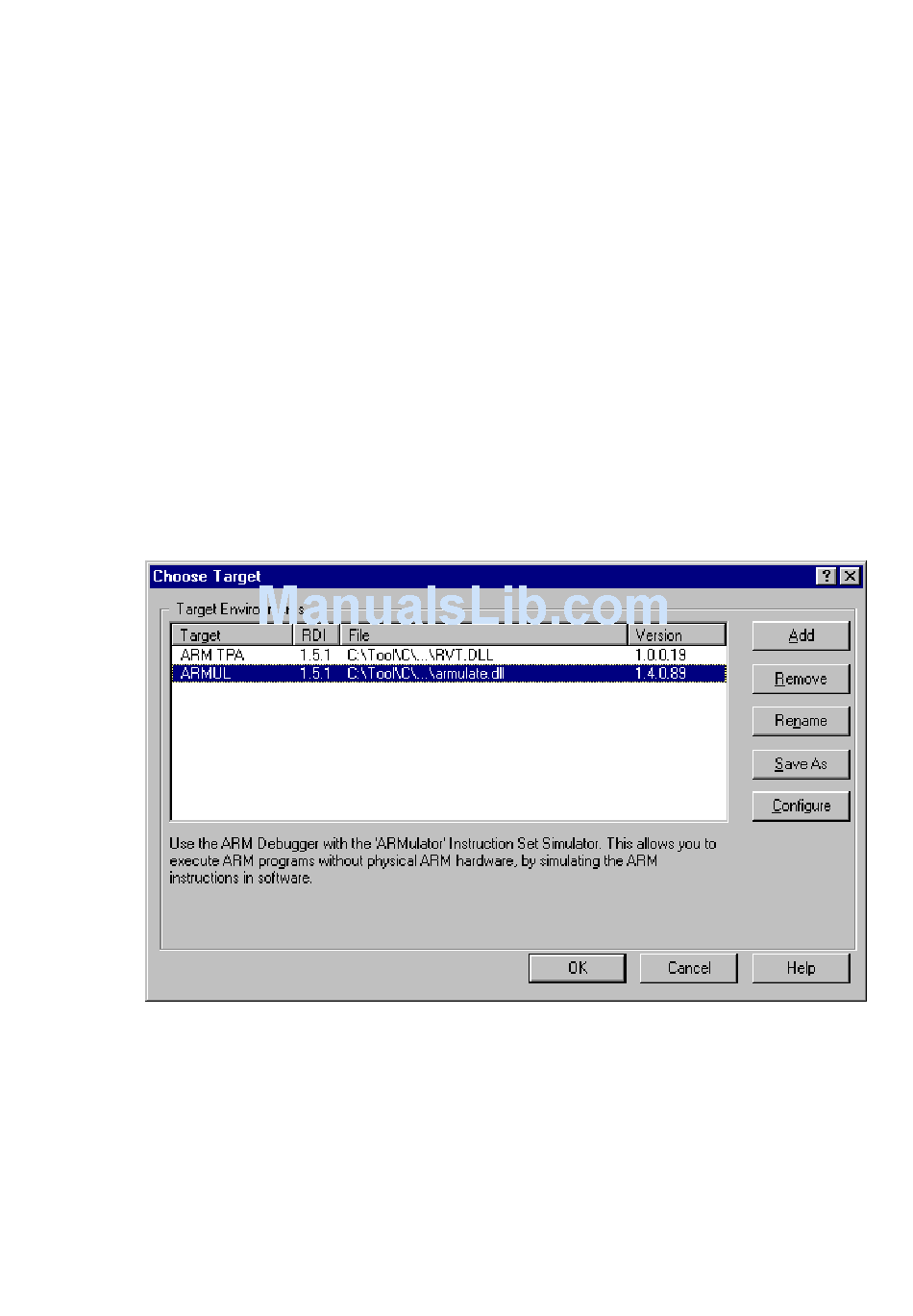

1. Start the ARM debugger and select Options | Configure Target... . This opens the
Choose Target dialog box:
2. Press the Add Button to add the JLinkRDI.dll.
J-Link / J-Trace (UM08001)
CHAPTER 12
SEGGER Wiki: Getting Started with Various IDEs
© 2004-2017 SEGGER Microcontroller GmbH & Co. KG
Setup for various debuggers
for information on how
