Appendix B Avid Performance Meter

User Interface Overview

Settings area
Messages area
Results display
Test Results
graph
88
The primary user interface of Avid Performance Meter is a single window
from which you can select the test to be performed, start and stop the selected
test, and view the test results as the test is in progress (see
auxiliary controls through dialog boxes.

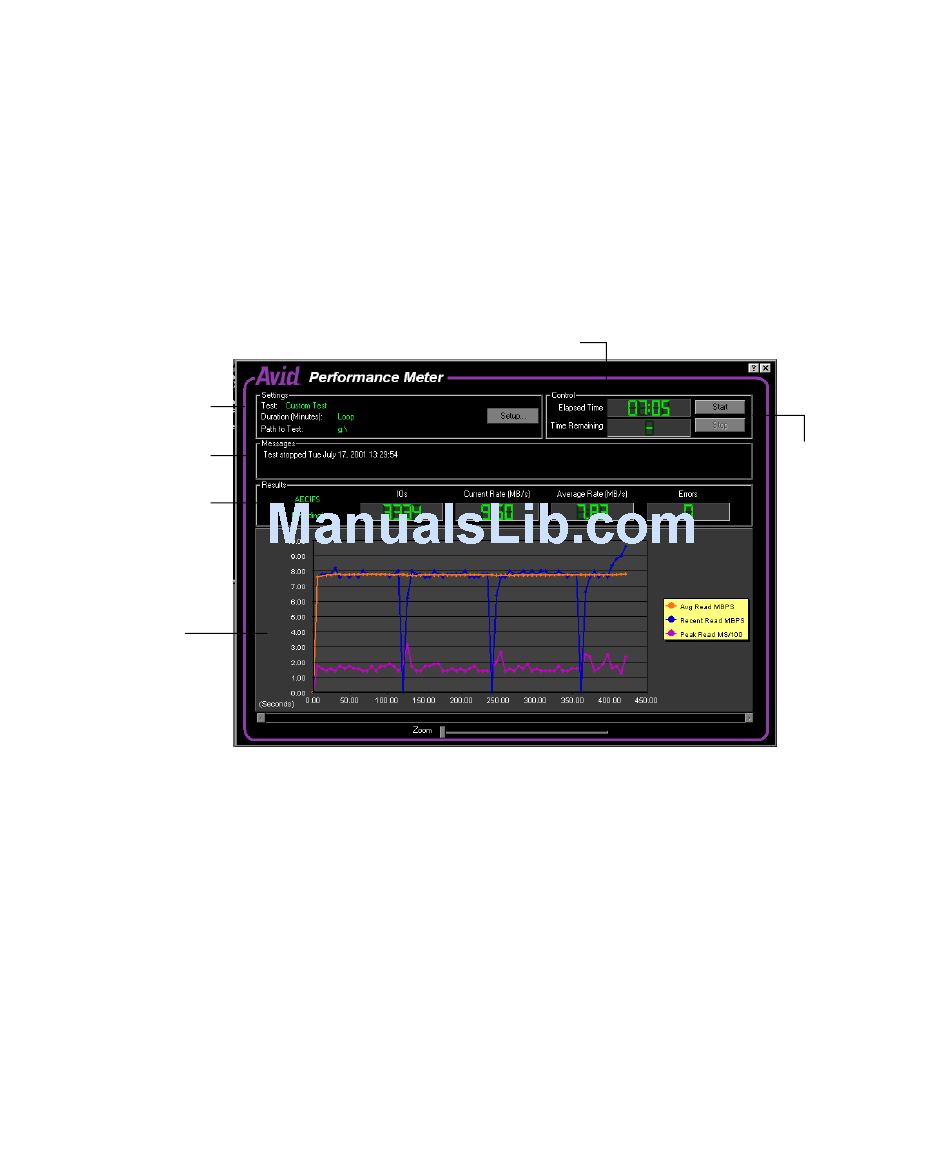

Avid Performance Meter Window
Settings Area
The Settings area displays the name of the currently selected test, the test
duration, and the path to the storage that will be tested.
The Setup button allows you to change the currently selected test settings. For
more information, see
Messages Area
The Messages area provides test progress and diagnostic information about
the operation of the utility. If you need to troubleshoot, the detailed text
information in these messages might be helpful.
Control area
"Setting Up Your Test" on page
Figure ). You access
Start and
Stop
buttons
91.
