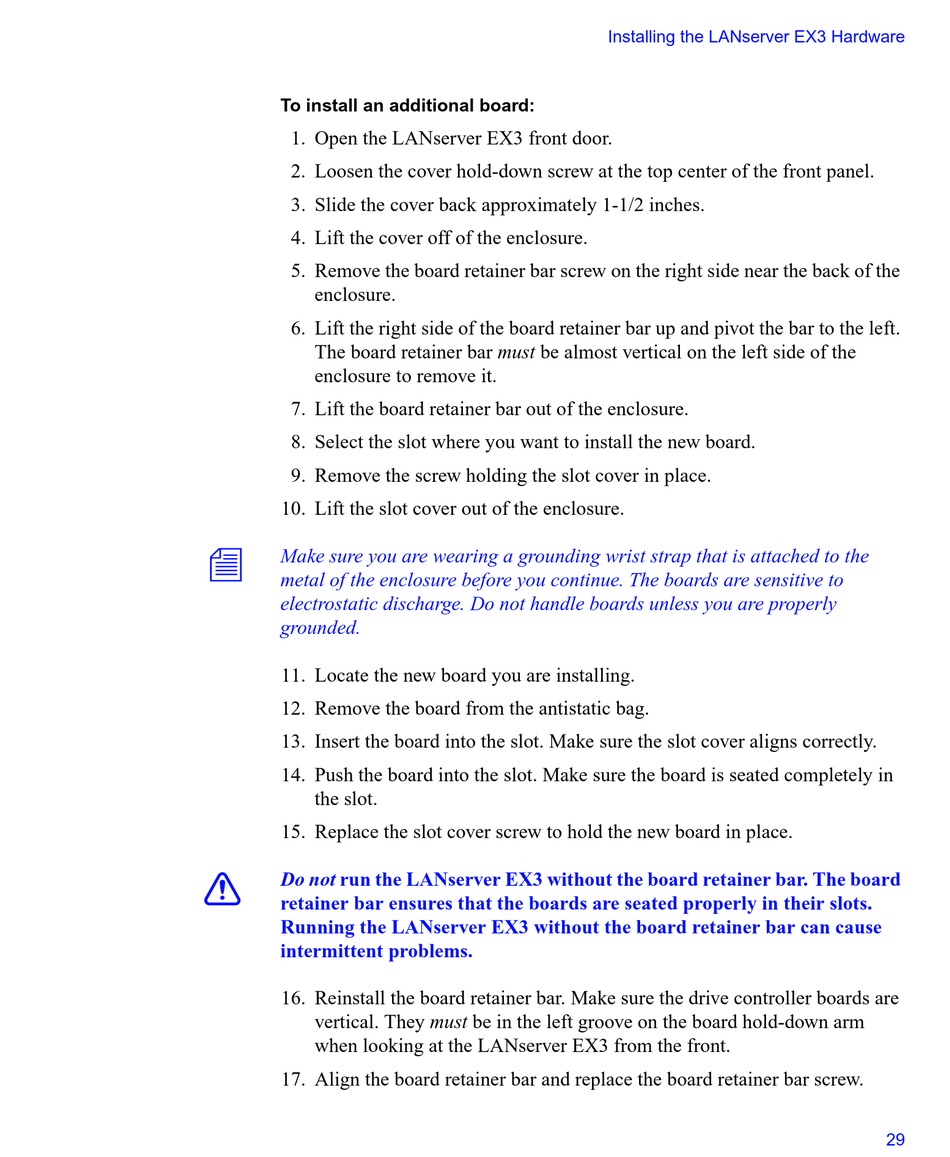

Avid Technology Unity LANserver EX3 Setup Manual page 29

To install an additional board:
1. Open the LANserver EX3 front door.
2. Loosen the cover hold-down screw at the top center of the front panel.
3. Slide the cover back approximately 1-1/2 inches.
4. Lift the cover off of the enclosure.
5. Remove the board retainer bar screw on the right side near the back of the
enclosure.
6. Lift the right side of the board retainer bar up and pivot the bar to the left.
The board retainer bar must be almost vertical on the left side of the
enclosure to remove it.
7. Lift the board retainer bar out of the enclosure.
8. Select the slot where you want to install the new board.
9. Remove the screw holding the slot cover in place.
10. Lift the slot cover out of the enclosure.
n
Make sure you are wearing a grounding wrist strap that is attached to the
metal of the enclosure before you continue. The boards are sensitive to
electrostatic discharge. Do not handle boards unless you are properly
grounded.
11. Locate the new board you are installing.
12. Remove the board from the antistatic bag.
13. Insert the board into the slot. Make sure the slot cover aligns correctly.
14. Push the board into the slot. Make sure the board is seated completely in
the slot.
15. Replace the slot cover screw to hold the new board in place.
c
Do not run the LANserver EX3 without the board retainer bar. The board
retainer bar ensures that the boards are seated properly in their slots.
Running the LANserver EX3 without the board retainer bar can cause
intermittent problems.
16. Reinstall the board retainer bar. Make sure the drive controller boards are
vertical. They must be in the left groove on the board hold-down arm
when looking at the LANserver EX3 from the front.
17. Align the board retainer bar and replace the board retainer bar screw.
