LANserver EX3 Hardware

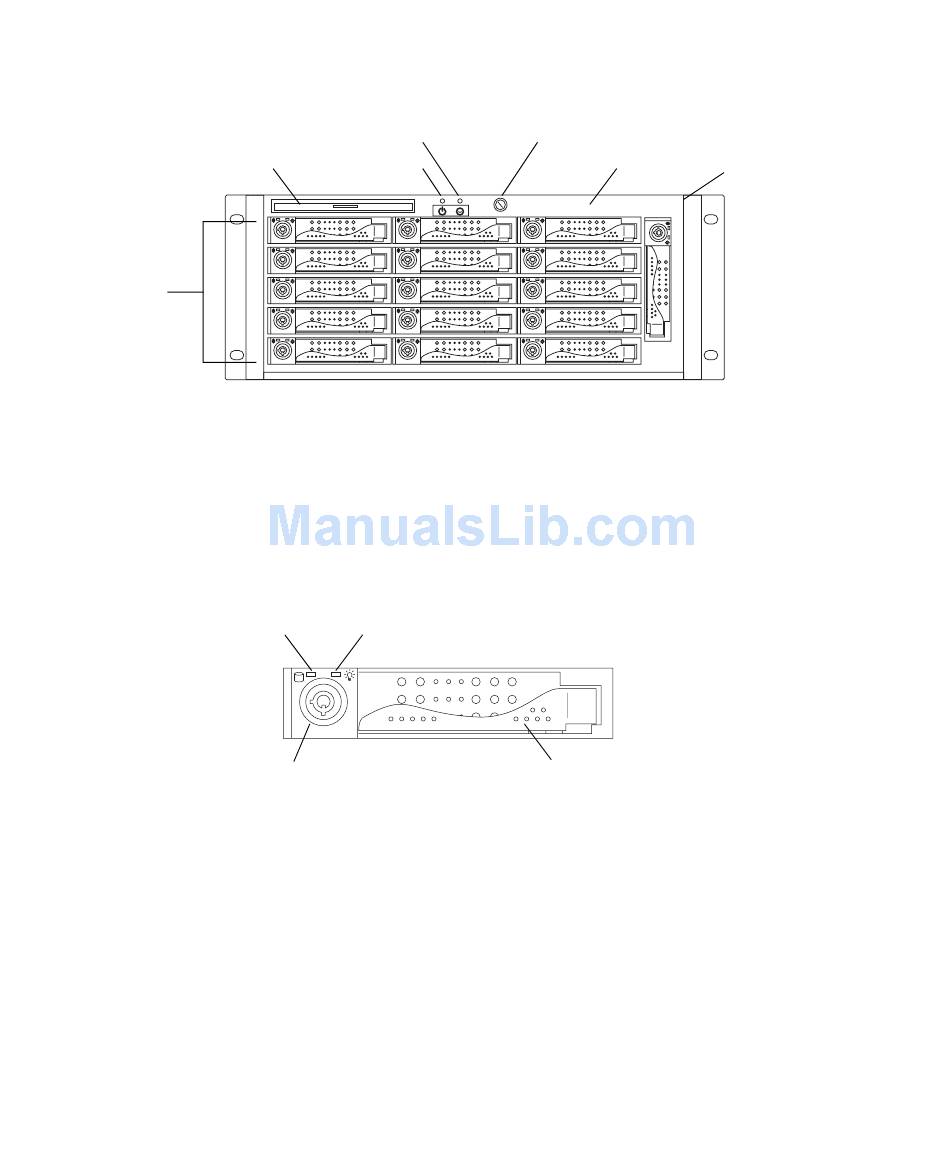

LANserver EX3 with Front Door Open

Cover hold-down screw
Reset button
Floppy drive
CD-ROM drive LANserver LEX-3 sticker
Power button
LEX-3
Hard drives
Each of the hard drives has a lock and a green and amber LED on the left side
of the drive carrier (see "Hard Drive Carrier"). The lock can be used to secure
the drive carrier, preventing its removal from the LANserver EX3. The green
LED is on when a drive is receiving power from the LANserver EX3. The
amber LED flashes when a drive is in use.
Hard Drive Carrier
Amber LED
Green LED
Lock Drive carrier latch
