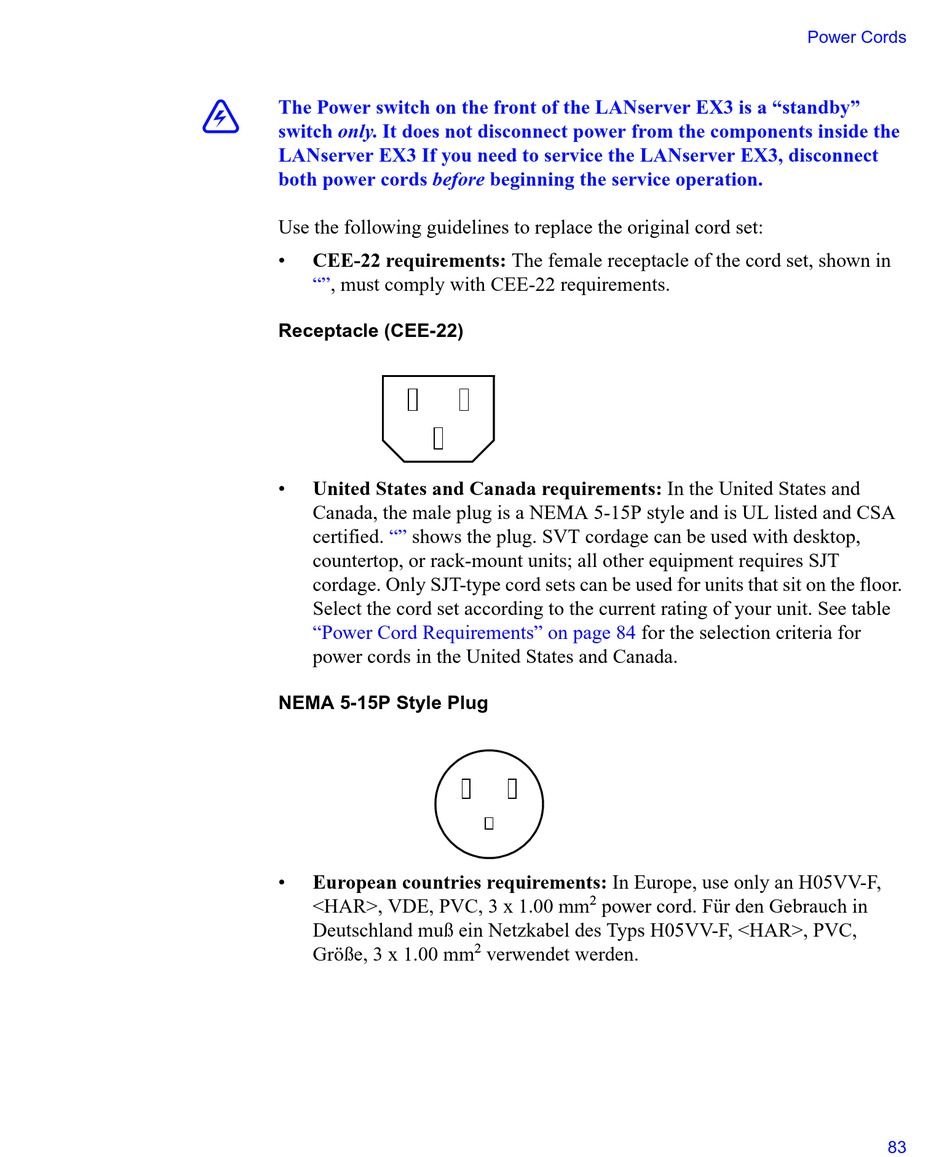

The Power switch on the front of the LANserver EX3 is a "standby"
switch only. It does not disconnect power from the components inside the
LANserver EX3 If you need to service the LANserver EX3, disconnect
both power cords before beginning the service operation.
Use the following guidelines to replace the original cord set:
• CEE-22 requirements: The female receptacle of the cord set, shown in
"", must comply with CEE-22 requirements.

Receptacle (CEE-22)

• United States and Canada requirements: In the United States and
Canada, the male plug is a NEMA 5-15P style and is UL listed and CSA
certified.
countertop, or rack-mount units; all other equipment requires SJT
cordage. Only SJT-type cord sets can be used for units that sit on the floor.
Select the cord set according to the current rating of your unit. See table
"Power Cord Requirements" on page 84
power cords in the United States and Canada.
NEMA 5-15P Style Plug
• European countries requirements: In Europe, use only an H05VV-F,
<HAR>, VDE, PVC, 3 x 1.00 mm
Deutschland muß ein Netzkabel des Typs H05VV-F, <HAR>, PVC,
Größe, 3 x 1.00 mm
"" shows the plug. SVT cordage can be used with desktop,
2
verwendet werden.
for the selection criteria for
2
power cord. Für den Gebrauch in
Power Cords
83
