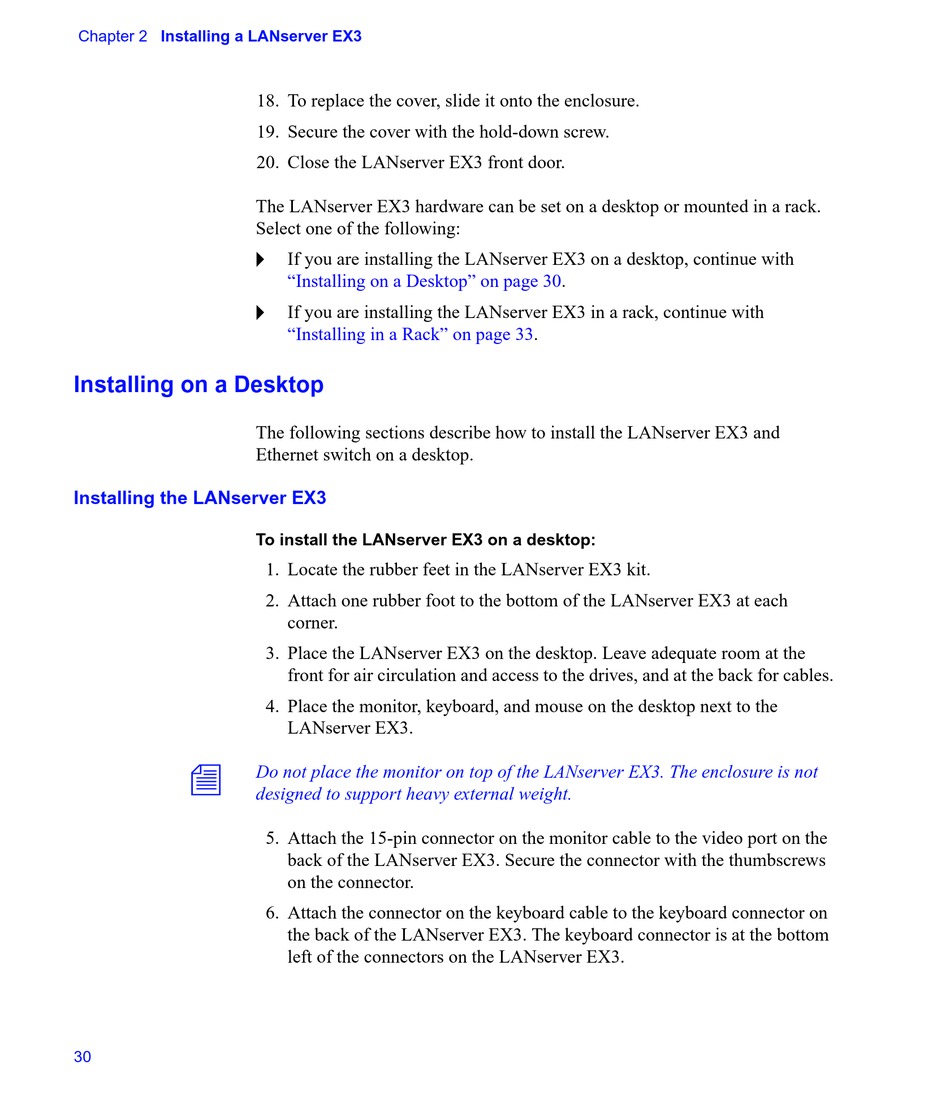

Chapter 2 Installing a LANserver EX3

Installing on a Desktop

Installing the LANserver EX3
n
30
18. To replace the cover, slide it onto the enclosure.
19. Secure the cover with the hold-down screw.
20. Close the LANserver EX3 front door.
The LANserver EX3 hardware can be set on a desktop or mounted in a rack.
Select one of the following:
t
If you are installing the LANserver EX3 on a desktop, continue with
"Installing on a Desktop" on page
t
If you are installing the LANserver EX3 in a rack, continue with
"Installing in a Rack" on page
The following sections describe how to install the LANserver EX3 and
Ethernet switch on a desktop.
To install the LANserver EX3 on a desktop:
1. Locate the rubber feet in the LANserver EX3 kit.
2. Attach one rubber foot to the bottom of the LANserver EX3 at each
corner.
3. Place the LANserver EX3 on the desktop. Leave adequate room at the
front for air circulation and access to the drives, and at the back for cables.
4. Place the monitor, keyboard, and mouse on the desktop next to the
LANserver EX3.
Do not place the monitor on top of the LANserver EX3. The enclosure is not
designed to support heavy external weight.
5. Attach the 15-pin connector on the monitor cable to the video port on the
back of the LANserver EX3. Secure the connector with the thumbscrews
on the connector.
6. Attach the connector on the keyboard cable to the keyboard connector on
the back of the LANserver EX3. The keyboard connector is at the bottom
left of the connectors on the LANserver EX3.
30.
33.
