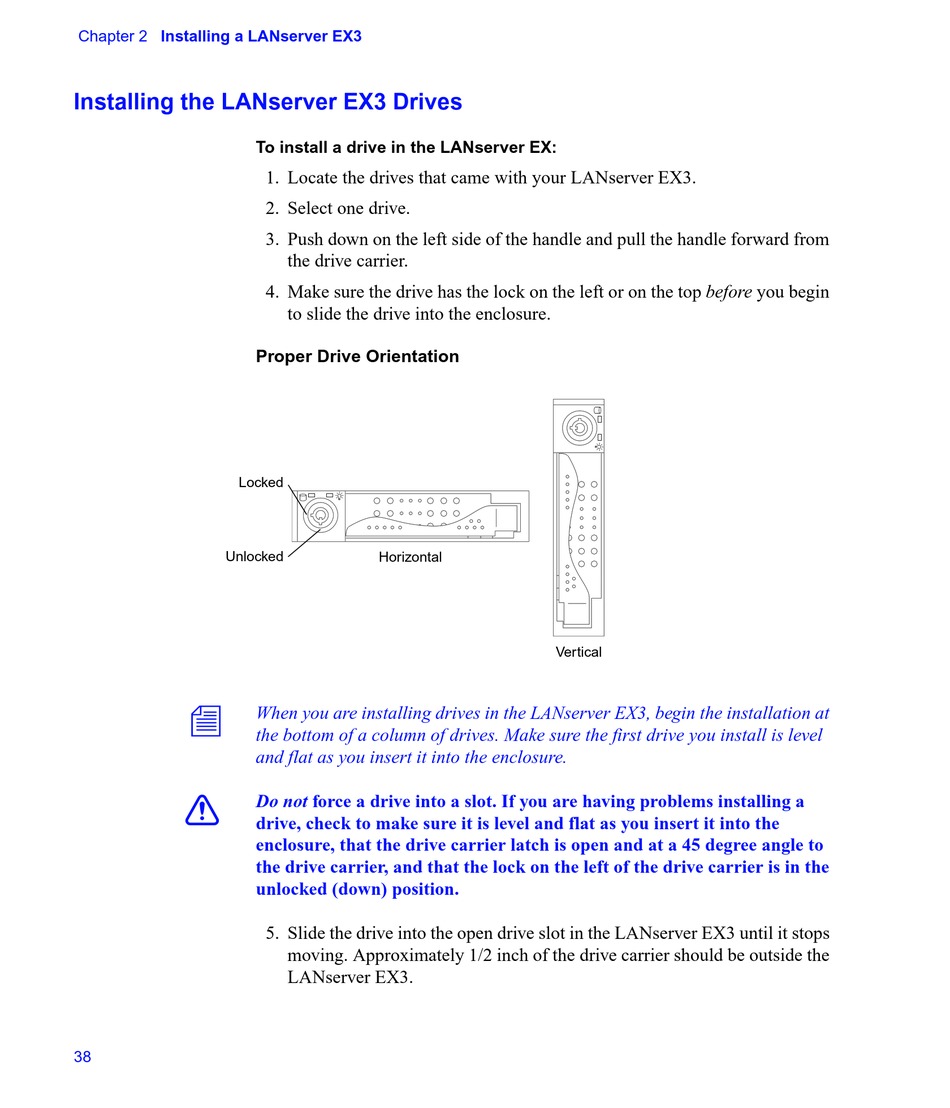

Chapter 2 Installing a LANserver EX3

Installing the LANserver EX3 Drives

Locked
Unlocked
n
c
38
To install a drive in the LANserver EX:
1. Locate the drives that came with your LANserver EX3.
2. Select one drive.
3. Push down on the left side of the handle and pull the handle forward from
the drive carrier.
4. Make sure the drive has the lock on the left or on the top before you begin
to slide the drive into the enclosure.
Proper Drive Orientation
Horizontal
When you are installing drives in the LANserver EX3, begin the installation at
the bottom of a column of drives. Make sure the first drive you install is level
and flat as you insert it into the enclosure.
Do not force a drive into a slot. If you are having problems installing a
drive, check to make sure it is level and flat as you insert it into the
enclosure, that the drive carrier latch is open and at a 45 degree angle to
the drive carrier, and that the lock on the left of the drive carrier is in the
unlocked (down) position.
5. Slide the drive into the open drive slot in the LANserver EX3 until it stops
moving. Approximately 1/2 inch of the drive carrier should be outside the
LANserver EX3.
Vertical
