Installing the Ethernet Switch

LEDs
7. Attach the connector on the mouse cable to the mouse connector on the
back of the LANserver EX3. The mouse connector is directly above the
keyboard connector.
The following instructions describe how to connect the LANserver EX3 to an
Ethernet switch. See the latest version of LANserver EX3 release notes for the
supported Ethernet switches available at this time.
To install the Ethernet switch on a desktop:
1. Place the switch on top of the LANserver EX3. Leave adequate room at
the front for cables and at the back for air circulation.
2. Locate a 10-foot (3-meter) Category 5 Ethernet cable in the LANserver
EX3 kit.
3. Attach the connector on one end of the Ethernet cable to the Gigabit
Ethernet adapter board in slot 4 on the back of the LANserver EX3 (see
"Attaching the Ethernet Cable to the Gigabit Ethernet Adapter

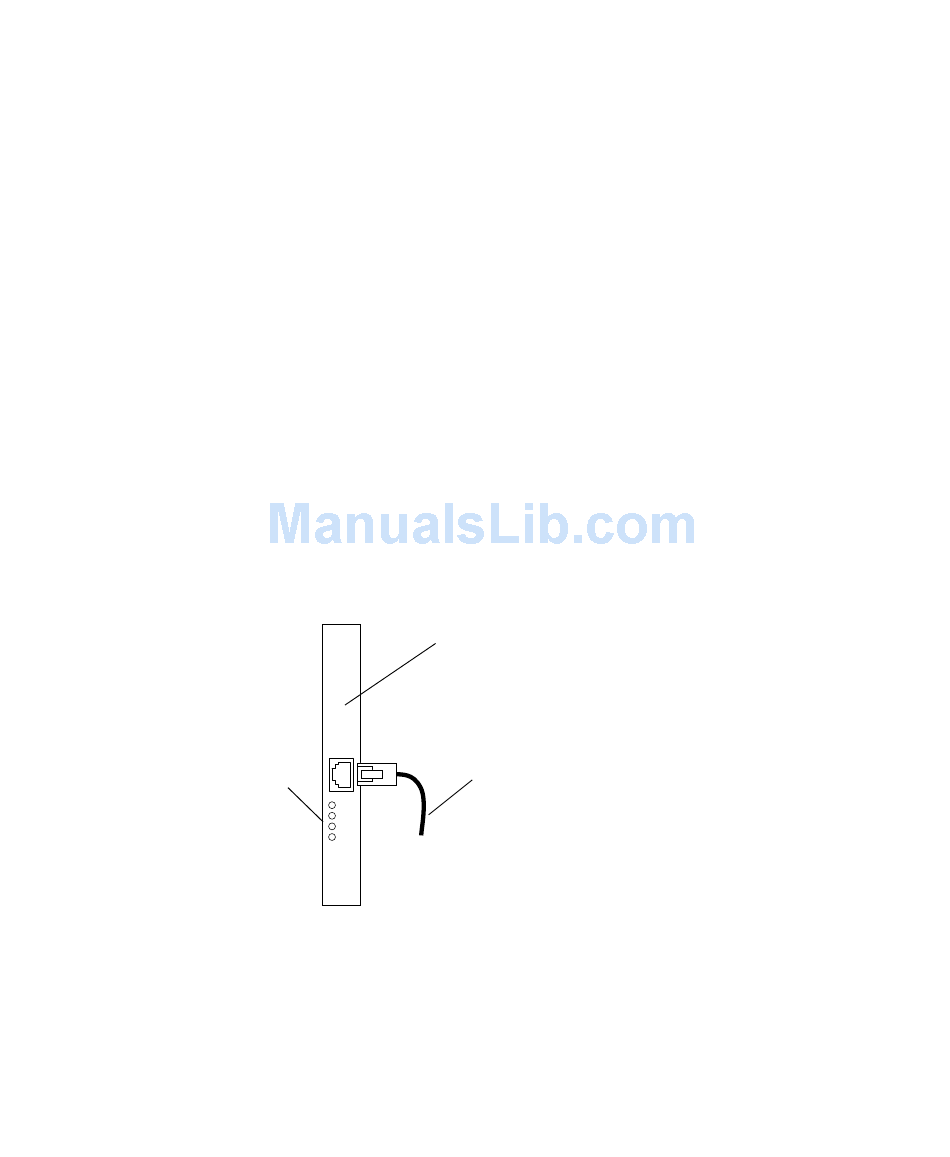

Attaching the Ethernet Cable to the Gigabit Ethernet Adapter Board
Gigabit Ethernet
adapter board
4. Attach the connector on the other end of the Ethernet cable to the Gigabit
Ethernet module on the front of the Ethernet switch (see
Ethernet Cable to the Ethernet Switch" on page
Installing the LANserver EX3 Hardware
Ethernet cable
Board").
"Attaching the
32).
