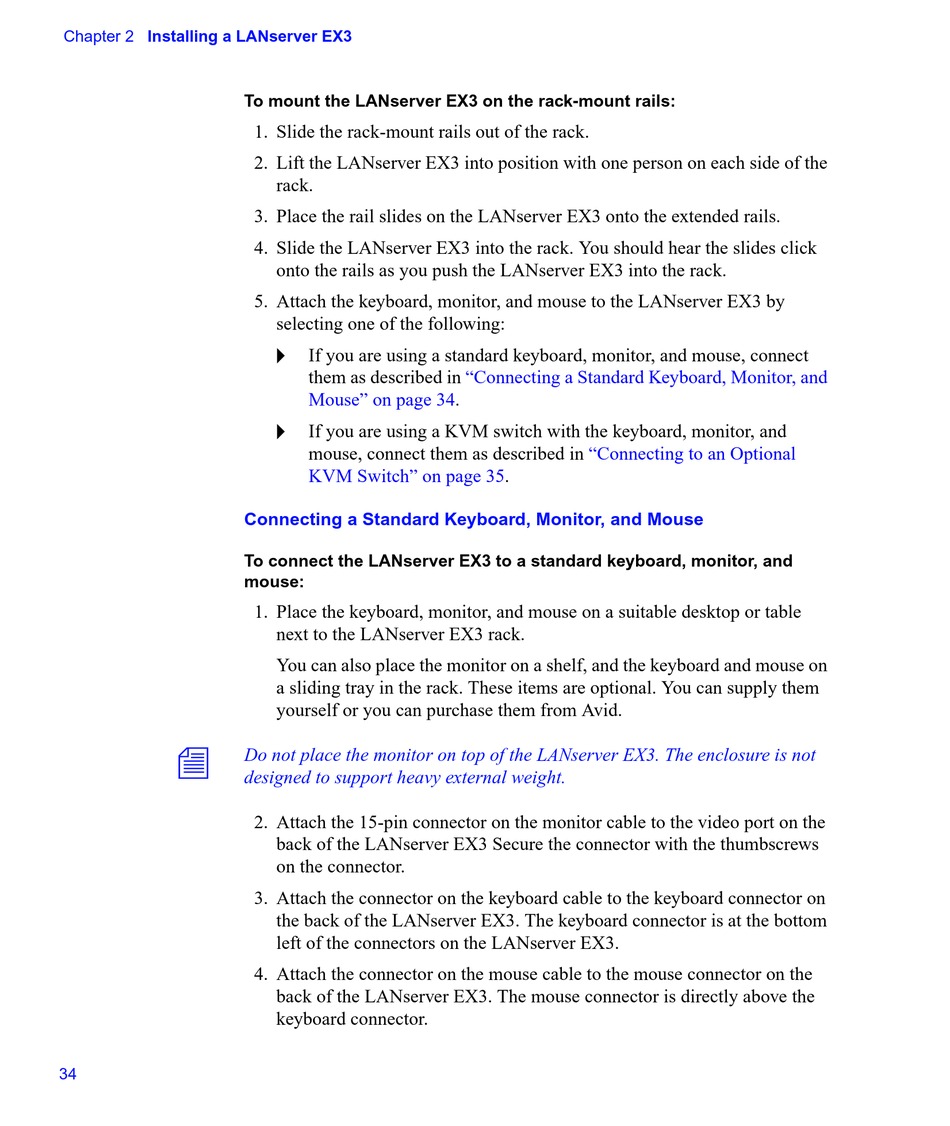

Chapter 2 Installing a LANserver EX3
n
34
To mount the LANserver EX3 on the rack-mount rails:
1. Slide the rack-mount rails out of the rack.
2. Lift the LANserver EX3 into position with one person on each side of the
rack.
3. Place the rail slides on the LANserver EX3 onto the extended rails.
4. Slide the LANserver EX3 into the rack. You should hear the slides click
onto the rails as you push the LANserver EX3 into the rack.
5. Attach the keyboard, monitor, and mouse to the LANserver EX3 by
selecting one of the following:
t
If you are using a standard keyboard, monitor, and mouse, connect
them as described in
Mouse" on page
t
If you are using a KVM switch with the keyboard, monitor, and
mouse, connect them as described in
KVM Switch" on page
Connecting a Standard Keyboard, Monitor, and Mouse
To connect the LANserver EX3 to a standard keyboard, monitor, and
mouse:
1. Place the keyboard, monitor, and mouse on a suitable desktop or table
next to the LANserver EX3 rack.
You can also place the monitor on a shelf, and the keyboard and mouse on
a sliding tray in the rack. These items are optional. You can supply them
yourself or you can purchase them from Avid.
Do not place the monitor on top of the LANserver EX3. The enclosure is not
designed to support heavy external weight.
2. Attach the 15-pin connector on the monitor cable to the video port on the
back of the LANserver EX3 Secure the connector with the thumbscrews
on the connector.
3. Attach the connector on the keyboard cable to the keyboard connector on
the back of the LANserver EX3. The keyboard connector is at the bottom
left of the connectors on the LANserver EX3.
4. Attach the connector on the mouse cable to the mouse connector on the
back of the LANserver EX3. The mouse connector is directly above the
keyboard connector.
"Connecting a Standard Keyboard, Monitor, and
34.
"Connecting to an Optional
35.
