3.4.2 Default configuration

The RESET button allows you to reset your router to its default configuration. If you want execute reset, carry out the
following steps:
• With the device switched off, press and hold the RESET button down while you turn the router on using the ON/
OFF switch (1).
• The PSU LED (green) will light up and the LED Slot begins to blink (amber). This continues to blink for 10 seconds.
• To reboot the device with the default configuration, let go of the RESET button while the LED Slot is still blinking
(i.e., before the 10-second period expires).
The default configuration sets up the device with the following IP address and access mask:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization may mean your router
default configuration is different from the one shown above.

3.5 Connecting the data

The Teldat H2 RAIL has the following data connections.

3.5.1 Data connection

The Teldat H2 RAIL is equipped with the following data connectors:
3.5.1.1 LAN SWITCH
The Teldat H2 RAIL incorporates a 4-port 10/100/1000BaseT switch with automatic MDI/MDIX support to connect to
a local area network (LAN).
The router has a LINK LED to indicate connection status.

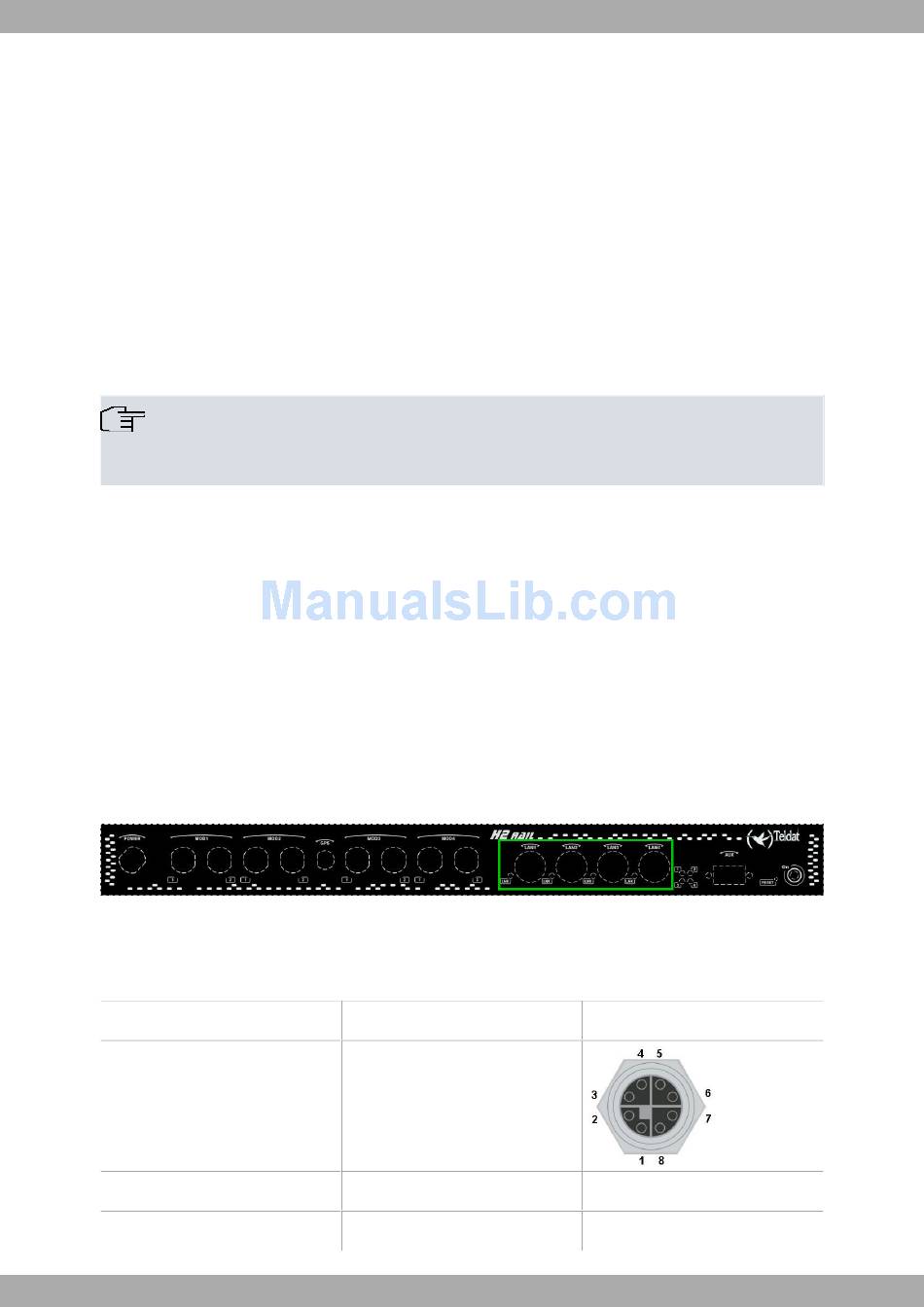

LAN Switch ports (4)
Fig. 8:
3.5.1.1.1 LAN connector pins
The LAN connector installed in the router is an M12 8P X-Code female connector or equivalent.
PIN
1
2
3
Teldat H2 RAIL
GE Signal -> Signal
BI-DA+ ->Tx+ (1)
BI-DA- -> Tx- (2)
BI-DB+ -> Rx+ (3)
3 Components and power supply
M12 8P X-Code female connector
9
