3.6.2 Default Configuration

The RST button allows you to boot the device with its default configuration (including the embedded Access Point, if
present) through the following steps:
• With the device switched off, press and hold the RST button down while you turn on the router using the ON/OFF
switch (1).
• The PWR LED (green) will light up and LED 'S' will begin to blink (amber). It will carry on blinking for 10 seconds.
• To boot the device with the default configuration, release the RST button while LED 'S' is still blinking (i.e. before
the 10-second period expires).
The router's default configuration establishes the following access IP and mask address:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
If available, the embedded access point's default configuration establishes the following parameters:
• IP address: DHCP client with no. 192.168.0.252/24 as default
• Credentials: admin / admin
• Only GUI access enabled
Note
Some devices leave the factory with customized settings. This personalization means your router's de-
fault configuration (and that of the embedded access point, where applicable) may be different from the
one shown above.

3.7 Data connections

The M8-Smart router has the following data connections.

3.7.1 4-port Ethernet switch Connections

The M8-Smart router incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect to a loc-
al area network (LAN).
Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports:

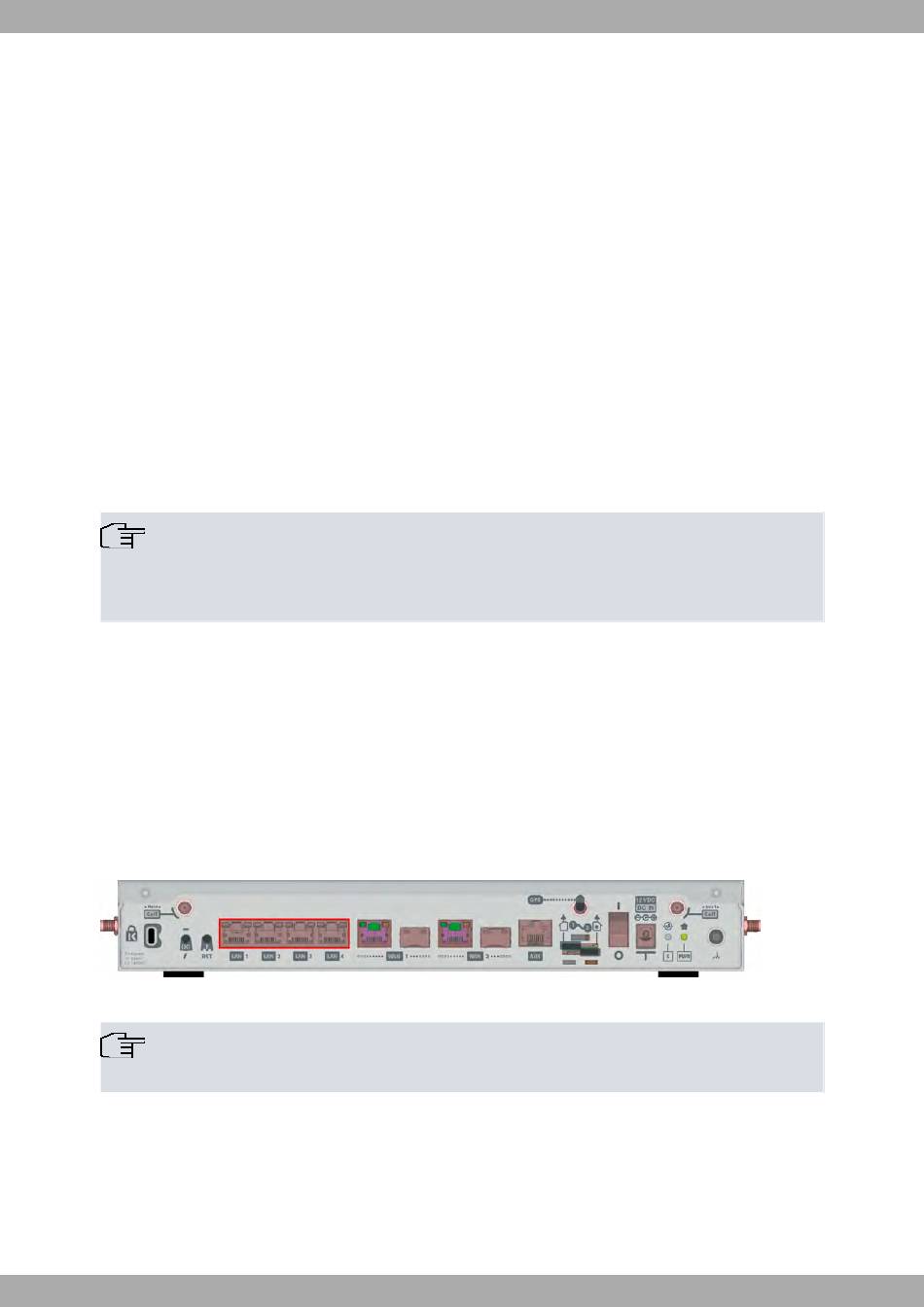

LAN switch ports
Fig. 24:
Note
Only the LAN 1 connector is available during booting and in BIOS mode.

3.7.2 WAN Connections

The M8-Smart has 4 Ethernet interfaces for WAN connection. These ports have 2 connectors - SFP for an optical
link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously. These interfaces are totally inde-
pendent from the switch and are handled as every other interface.
Please pay careful attention to the labeling to avoid mistaking these ports for other types of ports:
