3.5 RST button

The different RST button features are described below.

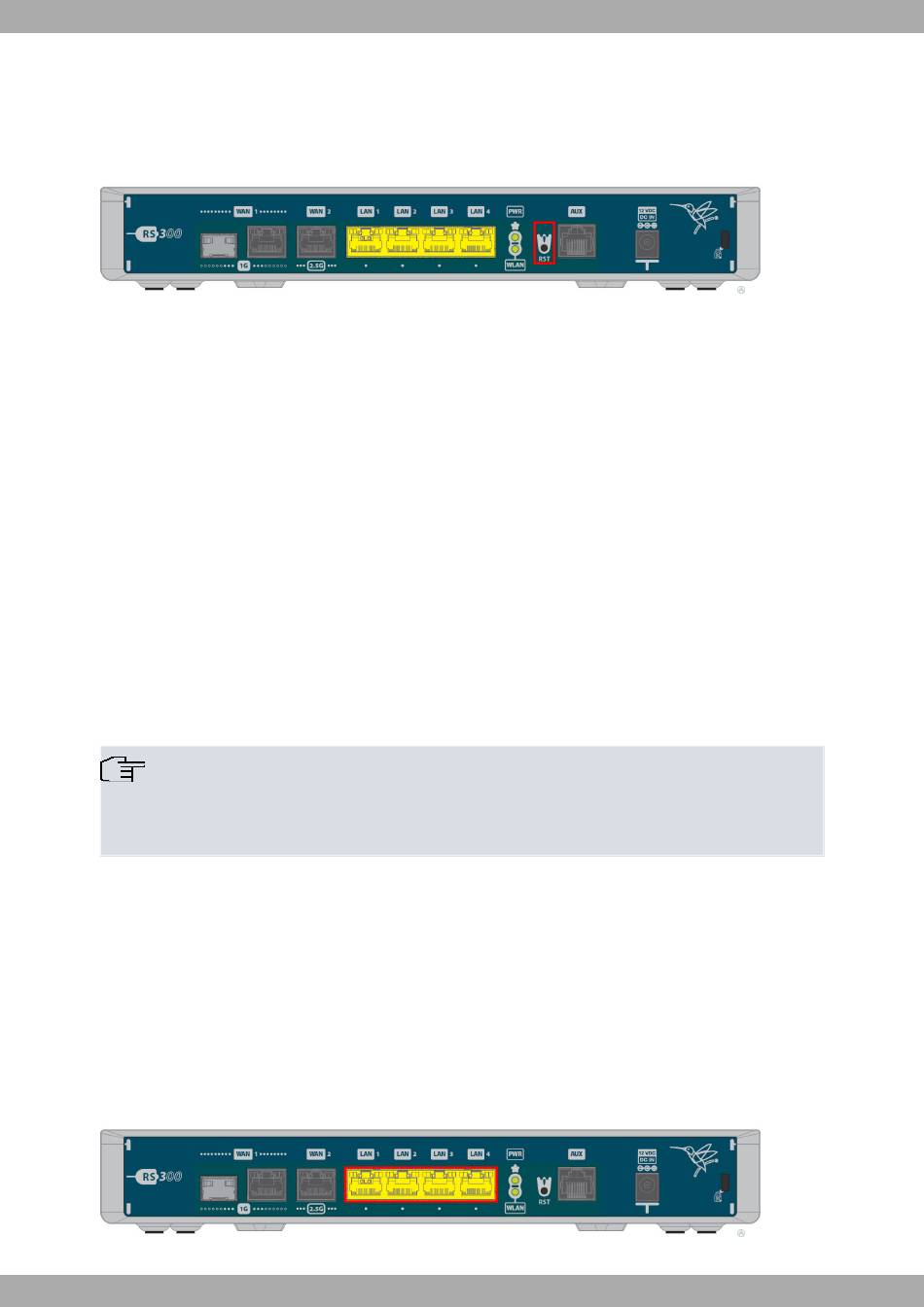

RST button
Fig. 14:

3.5.1 Rebooting the device

Once the device is operating normally, pressing the RST button will force a restart.

3.5.2 Default configuration

The RST button allows you to boot the device with its default configuration through the following steps:
• With the device switched off, keep the RESET button pressed until the device switches on.
• The PWR (green) will light up and the WLAN LED will begin to blink in yellow. This blinking will continue for 10
seconds.
• For the device to boot with the default configuration, release the Reset button while the WLAN LED is blinking (i.e.,
before the 10-second period expires).
Once the default configuration is running, the router's default configuration establishes the following access IP and
mask address:
• IP address: 192.168.0.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization means your router's de-
fault configuration (and that of the embedded access point, where applicable) may be different from the
one shown above.

3.6 Data connections

The RS300 router has the following data connections.

3.6.1 4-port Ethernet switch connections

The RS300 router incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect to a local
area network (LAN).
Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports:
LAN ports
Fig. 15:
RS300 Series
