3.5.5.1 Configuration using the local console (AUX connector)
The Teldat H2 RAIL has a DB9 female connector on the front panel known as AUX. This provides access to the
router local console and can operate as an asynchronous serial port. The interface behavior, or function, must be
pre-configured. By default, it is configured in local console mode. This section focuses on the connection for local
console mode.
To configure local console mode, connect the AUX port to an asynchronous terminal (or to a PC with terminal emula-
tion).
Note
The terminal must be configured as follows:
- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No flow control.
Connection to the configuration port is carried out using a DB9 male and a DB9 female connector. If the terminal has
DB25 connectors, you will need an additional adapter.

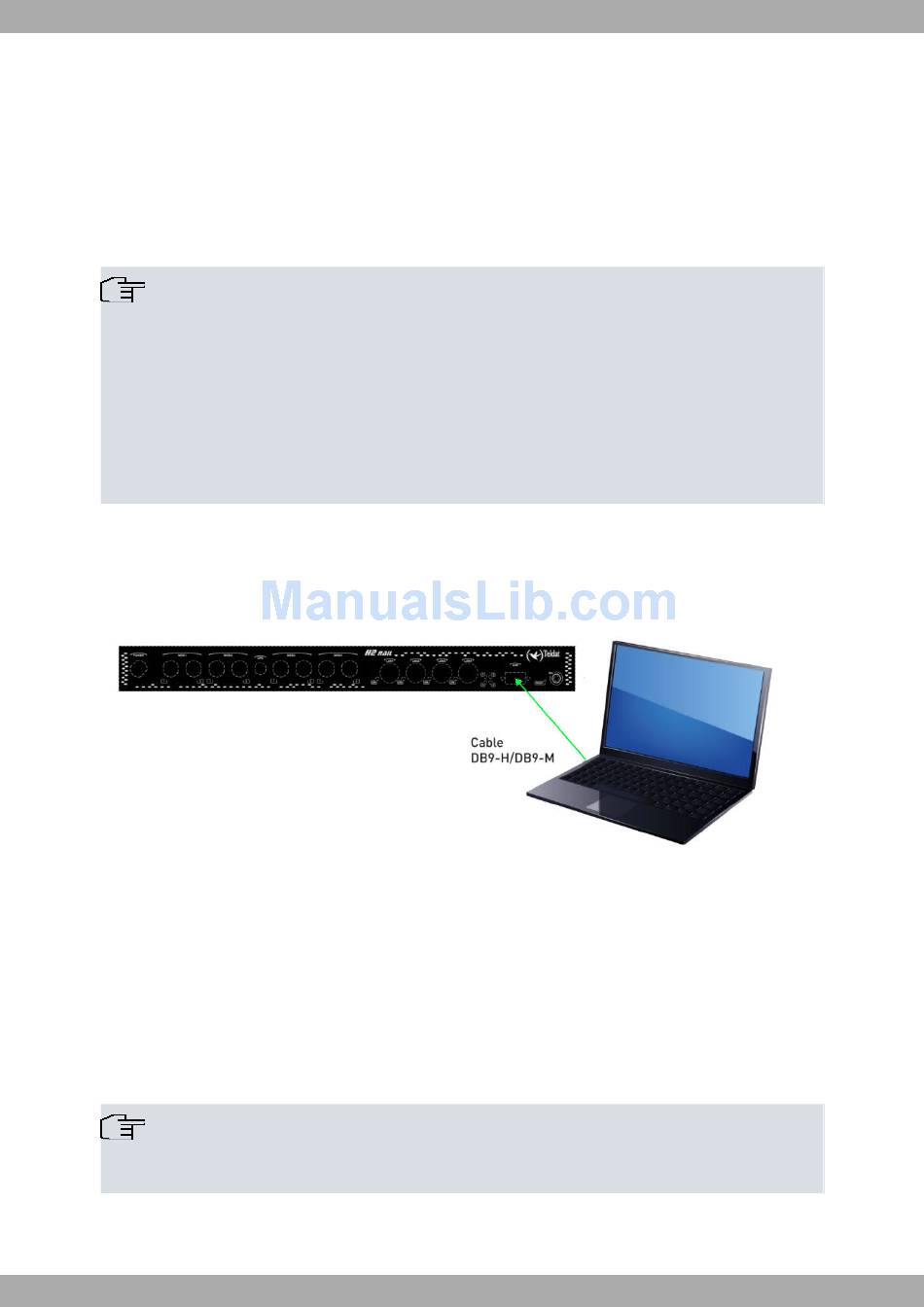

Connection for configuration
Fig. 13:
3.5.5.2 Configuration using the IP terminal (LAN1..4 connectors)
The Teldat H2 RAIL includes a default configuration, which activates if the device has not been pre-configured.
The router default configuration sets up the device with the following IP access address and mask:
Note
Some devices leave the factory with customized settings. This personalization may mean your router
default configuration is different from the one shown above.
This initial configuration lets you access the router configuration console through the Telnet IP protocol. To do this,
carry out the following:
Teldat H2 RAIL
• IP Address: 192.168.1.1
• IP Mask: 255.255.255.0
