3 Components and power supply

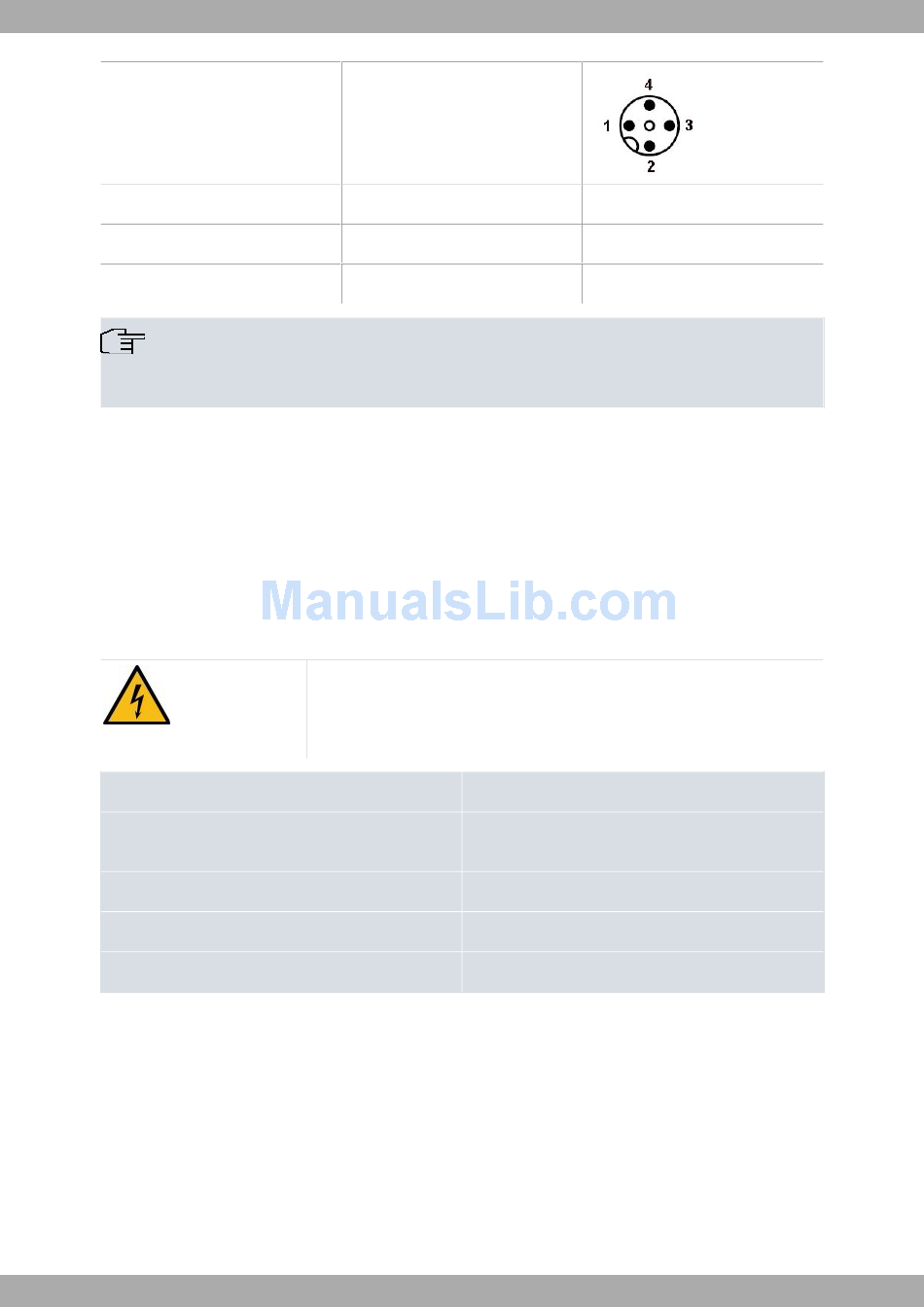

1
2
3
4
Note
Connections 1-2 and 3-4 are redundant. We recommend keeping this redundancy to guarantee device
availability.
3.3.1.2 Power cable
The power cable is not supplied with the router. The estimated maximum consumption for this equipment is 150 mA
operating at 110 VDC or 830mA operating at 24 VDC. Any cable with a cable gauge greater than, or equal to, 0.2
2
mm (AWG24) is acceptable. The type of cable and its gauge, however, will be determined by the characteristics of
the female connector used.
For example, for a female Phoenix Contact SACC-M12FS-4CON-PG7-M or equivalent, we recommend using a
cable with an outside diameter of 4-6 mm with four AWG24-AWG18 conductors.
You do not need a shielded cable but, if you do intend to use one, we recommend you attach the cable to the
grounding point on the other side of the router, to the ground point on the power supply or to both.
To connect
Make sure the power supply cable is not connected to
the device.
Connect all data cables.
Connect the power supply cable to the device.
Connect the power supply cable to the power supply.

3.4 RESET Button

The following sections describe the features for the RESET button.

3.4.1 Rebooting the device

Once the device is operating normally, press the RESET button to reboot.
8
+ V DC
+ V DC
0 V
0 V
Electric current in power cables, telephone lines and communication cables is
dangerous. To prevent electric shocks, before installing, handling or opening the
equipment covers, connect and disconnect the cables as shown in the following
table:
To disconnect
Disconnect the power supply cable from the power sup-
ply.
Disconnect the power supply cable from the device.
Disconnect the data cables.
