Operating basics
DVG7 module connectors
GPS7 module connectors
2–12
The standard DVG7 Digital Video Generator module is equipped with two BNC
connectors to output serial digital video signals. Option BK adds two additional
BNC connectors to output serial digital black signals. (See Figure 2-11.)

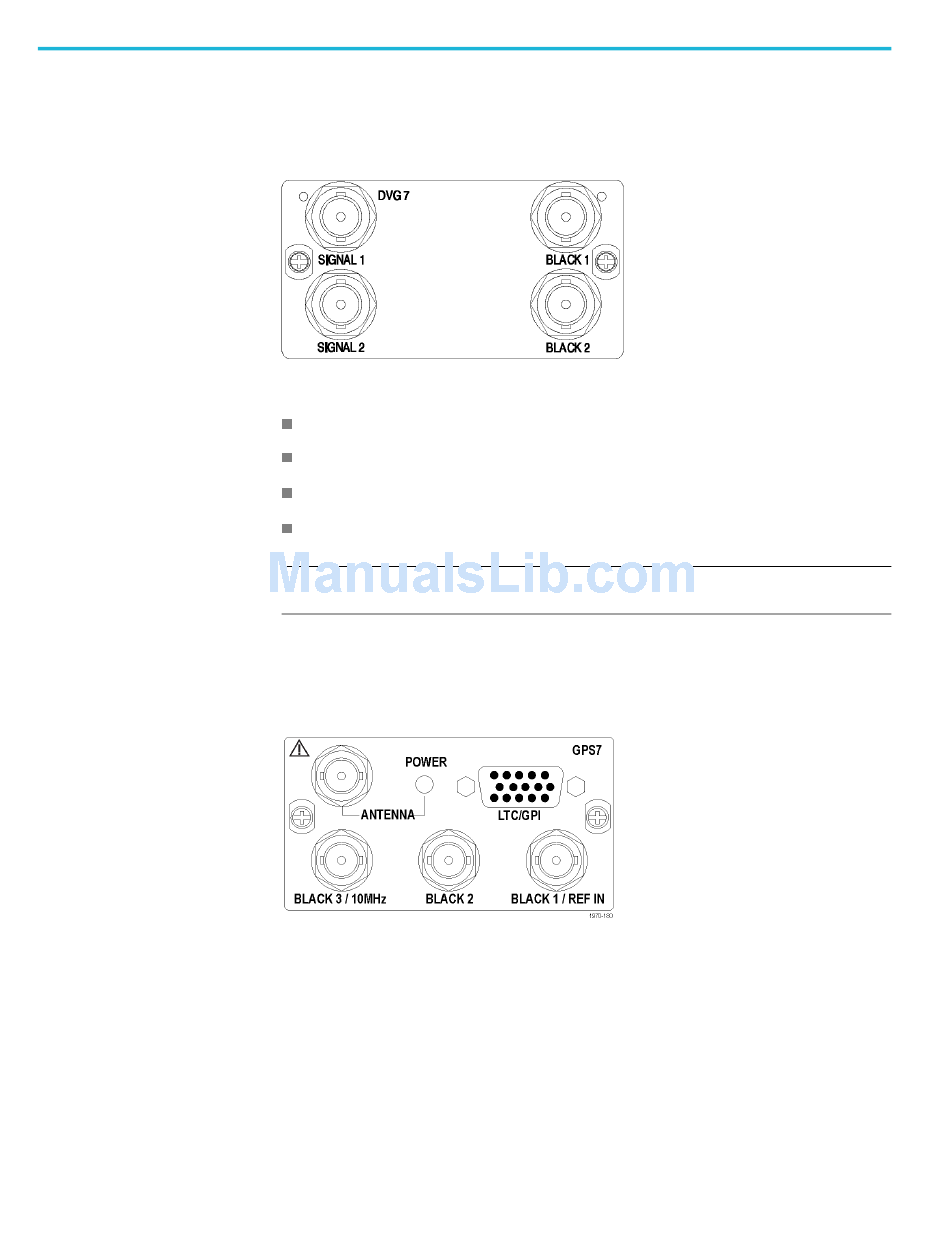

Figure 2-11: DVG7 module connectors (Option BK)

SIGNAL 1: Outputs the selected serial digital video signal.
SIGNAL 2: Outputs the selected serial digital video signal.
BLACK 1: Outputs the selected serial digital black signal (Option BK only).
BLACK 2: Outputs the selected serial digital black signal (Option BK only).
NOTE.
The SIGNAL 1 and SIGNAL 2 connectors output the same test signal, and
the BLACK 1 and BLACK 2 connectors output the same black signal.
The GPS7 GPS Synchronization and Timecode module is equipped with four
BNC connectors and one 15-pin, D-sub connector as described below. (See
Figure 2-12.)

Figure 2-12: GPS7 module connectors
