HD3G7 HD 3 Gb/s SDI Video Generator module
To select the signal format
on the HD3G7 module
To select the sample
structure and depth on the
HD3G7 module
3–164
3. Use the left (◄) or right (►) arrow button to scroll through the available
output modes:
3G–Level A (1920 × 1080)
3G-Level A (1280 × 720)
3G–Level A (2K × 1080)
3G–Level B (1920 × 1080)
3G–Level B (2K × 1080)
3G–Level B (2×HD 1080)
3G-Level B (2×HD 720)
HD (1920 × 1080)
HD (1280 × 720)
4. Press the ENTER button to select the desired output mode. Note that the
dot will appear in front of the output mode on the display, to indicate that
it is now the selected output mode.
Perform the following steps to select the signal format:

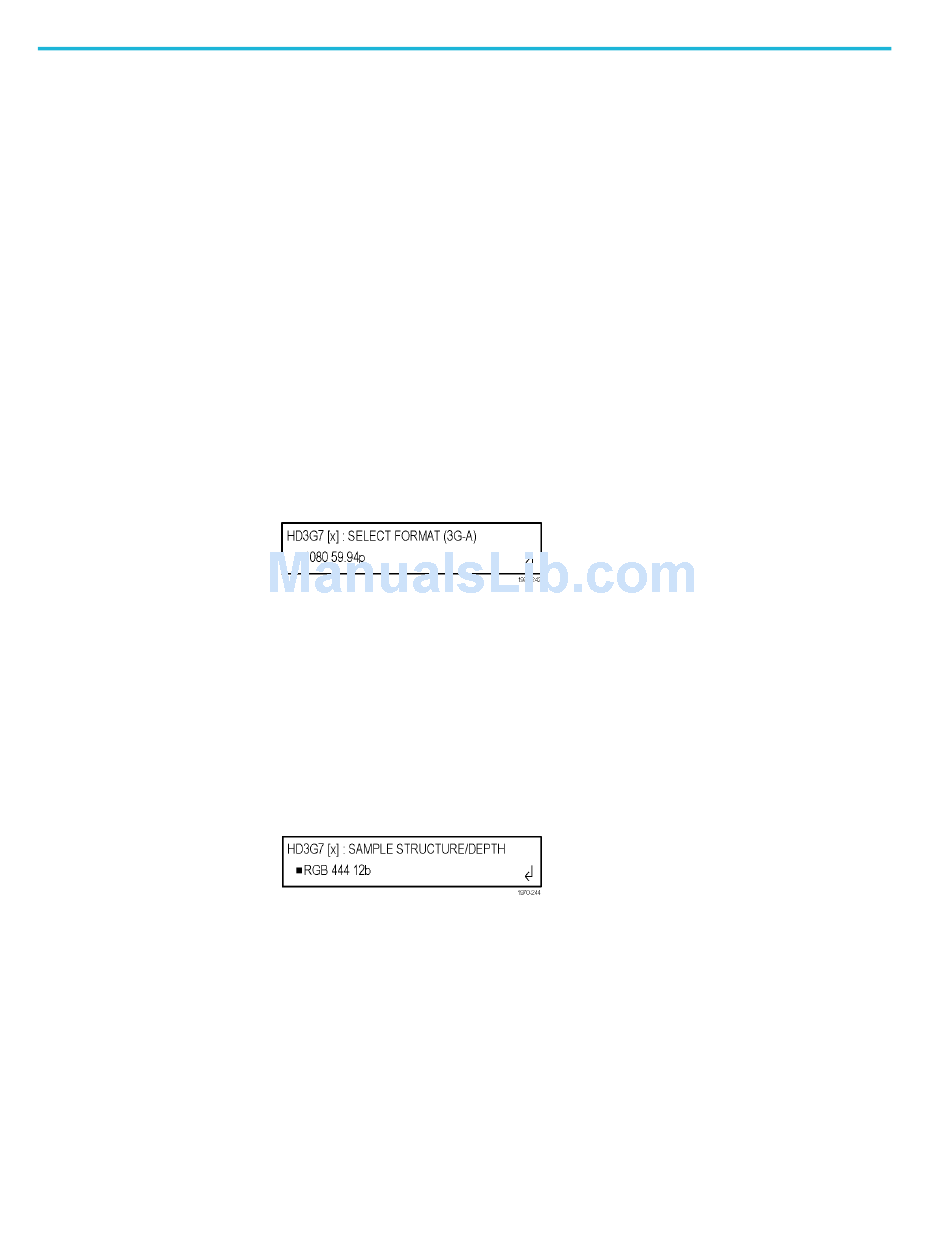

1. Press the FORMAT button. The menu display changes as follows:
2. Use the left (◄) or right (►) arrow button, or press the FORMAT button
repeatedly, to select one of the signal formats, and then press the ENTER
button to confirm the selection. The dot will appear at the left of the second
line to indicate that the format has been selected.
3. Press the BACK button to exit FORMAT mode.
There are several sample structures to choose from when the output mode is set to
a non-fast-progressive format. Press the down (▼) arrow button to navigate to
the sample structure/depth selection shown below:
Press the left (◄) or right (►) arrow buttons to scroll through the available
sample structures:
3G non-fast progressive formats (1080 line)
• RGB 444 12b
• RGB 444 10b
• RGBA 444 10b
• YCbCr 444 12b
• YCbCr 444 10b
• YCbCrA 444 10b
• YCbCr 422 12b
• YCbCrA 422 12b
(Level B mapping only)
