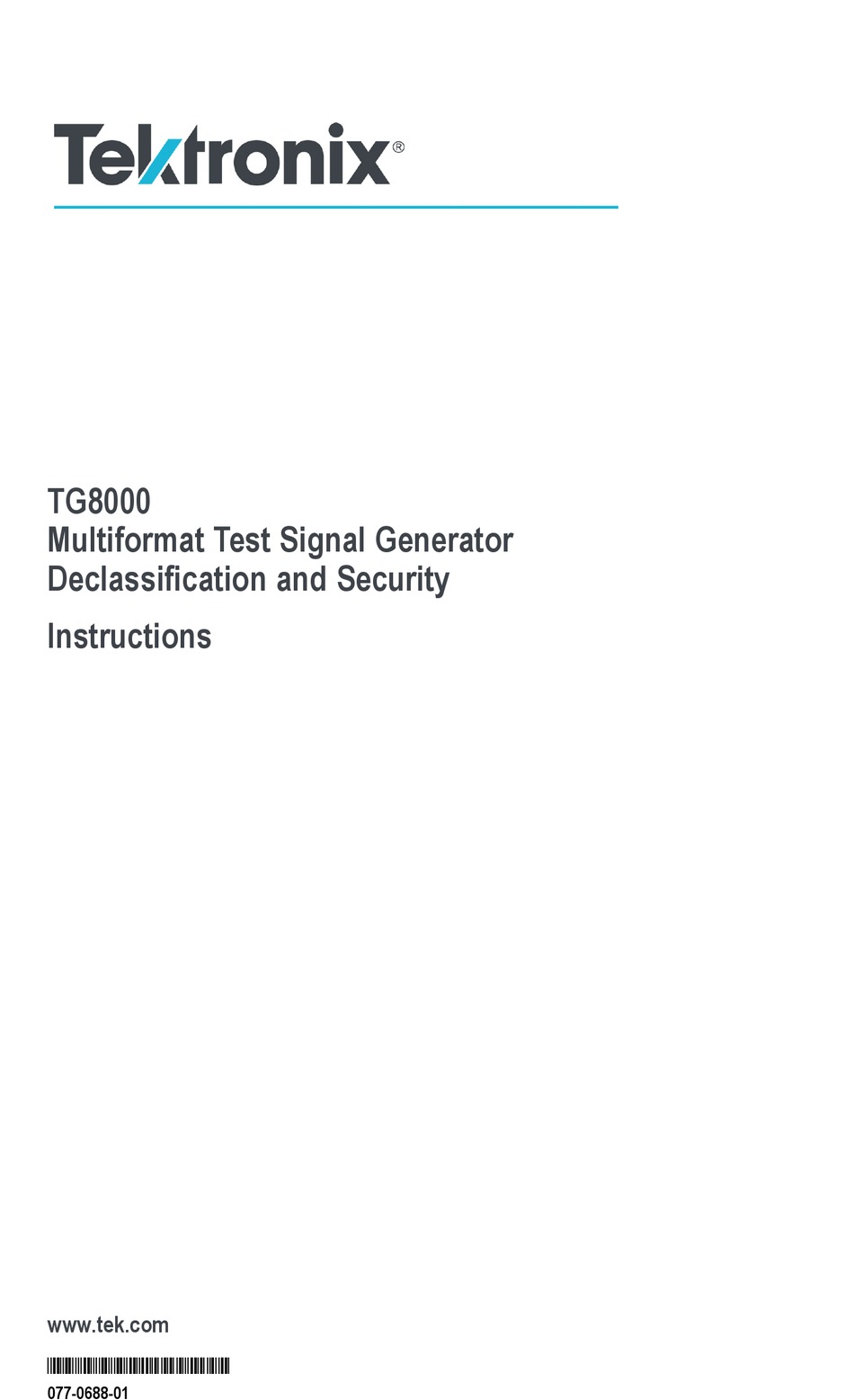

- Page 1 TG8000 Multiformat Test Signal Generator Declassification and Security Instructions www.tek.com *P077068801* 077-0688-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ......................Clear and sanitize procedures ..................Memory devices ....................Troubleshooting....................How to clear or sanitize a nonfunctional instrument............How to recover from clearing or removing memory from the instrument ......TG8000 Declassification and Security Instructions... - Page 4 Table of Contents TG8000 Declassification and Security Instructions...
-
Page 5: Preface
SDI7 Dual Channel SD/HD/3G SDI Video Generator module Required documents To perform the procedures in this document, you will need to have access to the TG8000 manuals listed below. These manuals are available on the Tektronix Web site at www.tektronix.com/downloads. TG8000 Multiformat Test Signal Generator User Manual (Tektronix part number 071-3036-XX;... - Page 6 (temporarily or permanently) from a secured area to a nonsecured area. User-modifiable. The user can write to the memory device during normal instrument operation, using the instrument interface or remote control. TG8000 Declassification and Security Instructions...
-
Page 7: Clear And Sanitize Procedures
Memory devices The following tables list the volatile and nonvolatile memory devices in the modules. Detailed procedures to clear or sanitize these devices are shown following the tables. Table 1: Volatile memory devices for the TG8000 mainframe Type Type and Backed... - Page 8 Clear and sanitize procedures Table 1: Volatile memory devices for the TG8000 mainframe (cont.) Type Type and Backed Method Data minimum user up by input User size Function data battery modification method Location accessible To clear sanitize volatile Indirectly UI or...
- Page 9 Clear and sanitize procedures Table 2: Nonvolatile memory devices for the TG8000 mainframe Type of user Type and information Method of Data input User minimum size Function stored modification method Location Accessible To clear To sanitize Serial EEPROM Processor boot...
- Page 10 fixed mode a ribbon cable, and to the saved. This will erase destroy the entire antenna connector on the board the previous position rear panel and save the new one During normal instrument operation. TG8000 Declassification and Security Instructions...
- Page 11 128 K x 8 Unused None 389-4093-00 board, U224 None Remove part and EEPROM destroy During normal instrument operation. TG8000 Declassification and Security Instructions...
- Page 12 128 K x 8 Unused None 389-4093-00 board, U224 None Remove part and EEPROM destroy During normal instrument operation. TG8000 Declassification and Security Instructions...
- Page 13 4. Press the left (◄) or right (►) arrow button to select Setup, and then press the ENTER button. 5. Press the up (▲) or down (▼) arrow button to select TG8000 : UTIL : NET SETUP : DHCP. 6. Press the left (◄) or right (►) arrow button to select Disable.
- Page 14 If the status is Not Mounted, press the ENTER button to mount the USB drive. 5. Press the up (▲) or down (▼) arrow button to select TG8000 : UTILITY : BACKUP/RESTORE. 6. Press the left (◄) or right (►) arrow button to select one of the following: Backup Presets to USB: Backs up only the instrument presets to the USB drive.
- Page 15 14. On the computer, open an FTP client such as Windows Explorer. 15. In the Windows Explorer command box, enter “ftp://IP address”, where IP address is the network address assigned to the TG8000 generator. NOTE. Some FTP clients may ask for login credentials. In this case, login with a user name of “anonymous”...
- Page 16 files for the standard signals and logos that are supplied with the instrument. You do not need to delete the factory default files. 20. After you have deleted the desired files, close the FTP window. TG8000 Declassification and Security Instructions...
-
Page 17: Troubleshooting
1. Power on the module. module 2. Calibrate the module as instructed in the TG8000 Multiformat Test Signal Generator Service Manual (Tektronix part number 077-0687-XX). 3. Reconfigure the module for your specific application. You can find configuration information in the TG8000 Multiformat Test Signal Generator... - Page 18 Option 3G enabled before the module being sanitized. a. Press the MODULE button until TG8000: PRESET is displayed. b. Press the up (▲) or down (▼) arrow button to select TG8000: UTILITY, and then press the ENTER button. c. Press the up (▲) or down (▼) arrow button until TG8000: UTILITY: OPTIONS ENABLED is displayed.
- Page 19 files as described below: a. Connect the USB drive to the TG8000 generator that you used to back up the presets or user data files. b. Press the MODULE button to select TG8000 : PRESET.
- Page 20 Press the MODULE button to select TG8000 : PRESET. b. Press the up (▲) or down (▼) arrow button to select TG8000 : UTILITY, and then press the ENTER button. c. Press the up (▲) or down (▼) arrow button to select TG8000 : UTILITY : LCD CONTRAST.
