How to operate the AWVG7 module

TG8000 Multiformat Test Signal Generator User Manual
After the module is installed in the mainframe, and the mainframe is installed in
the rack or other location where it will be used, use the following procedure to
access each function of the module:
1. Connect the power cord to the power connector on the rear panel, and then
plug the cord into to the AC electric power source. Electric power is supplied
to the mainframe.
2. Wait until the power-on initialization process is complete, and then check that
no error messages appear on the display.

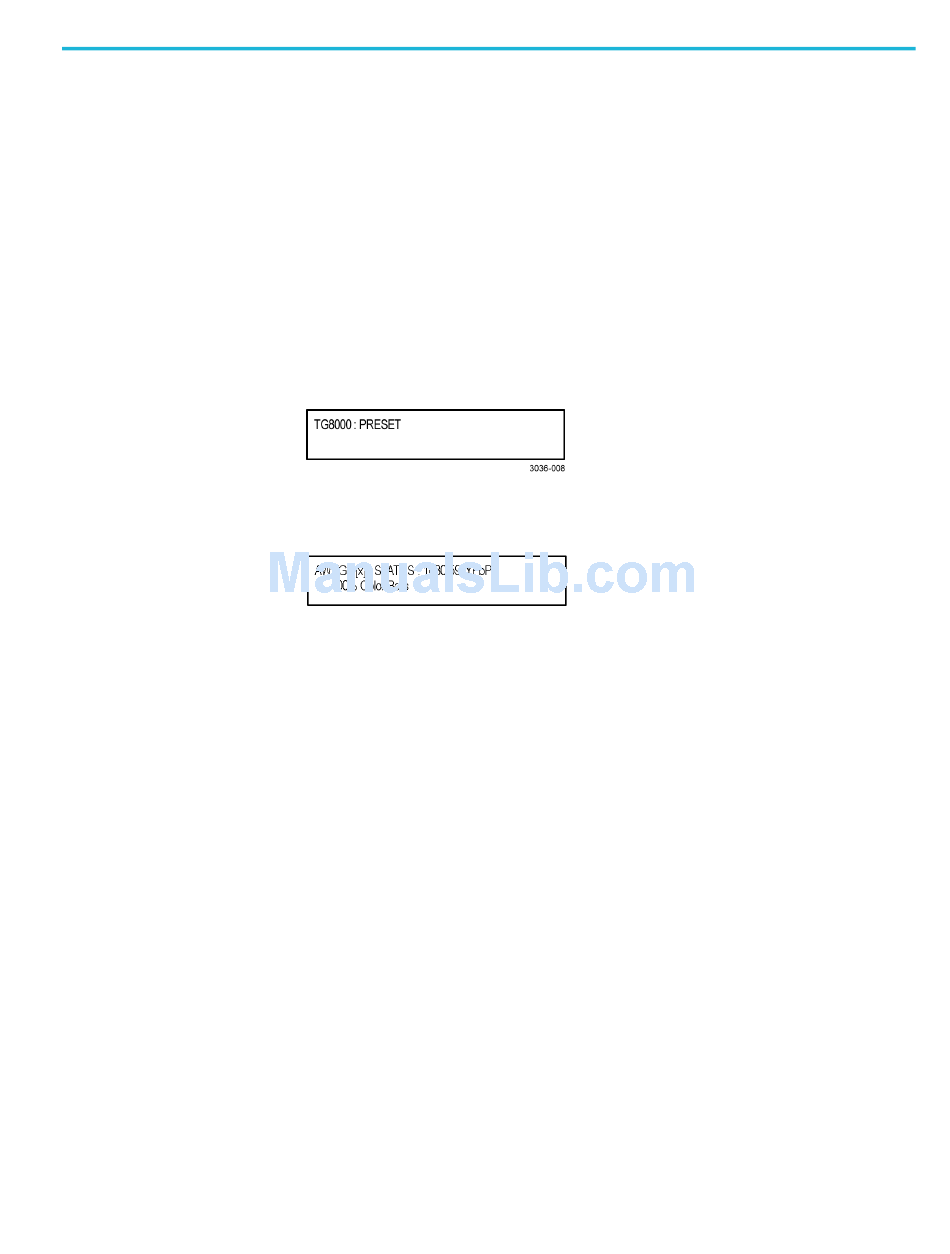

3. After the initialization process is complete, the mainframe main menu appears
as shown below.
4. Press the front-panel MODULE button until the AWVG7 module main menu
appears as shown below.
5. Select the signal format and the signal you want to output. (See page 3-50, To
select an output signal on the AWVG7 module.)
6. Use the front-panel arrow buttons to navigate and select items in the main
menu and submenus.
Refer to AWVG7 module main menu for detailed information about the main
menu items and the submenu items. (See page 3-52.)
AWVG7 Analog Wideband Video Generator module
3–49
