Tektronix TG8000 User Manual page 452

SDI7 Dual Channel SD/HD/3G SDI Video Generator module
SDI7 module
AUDIO (EMBEDDED)
submenu

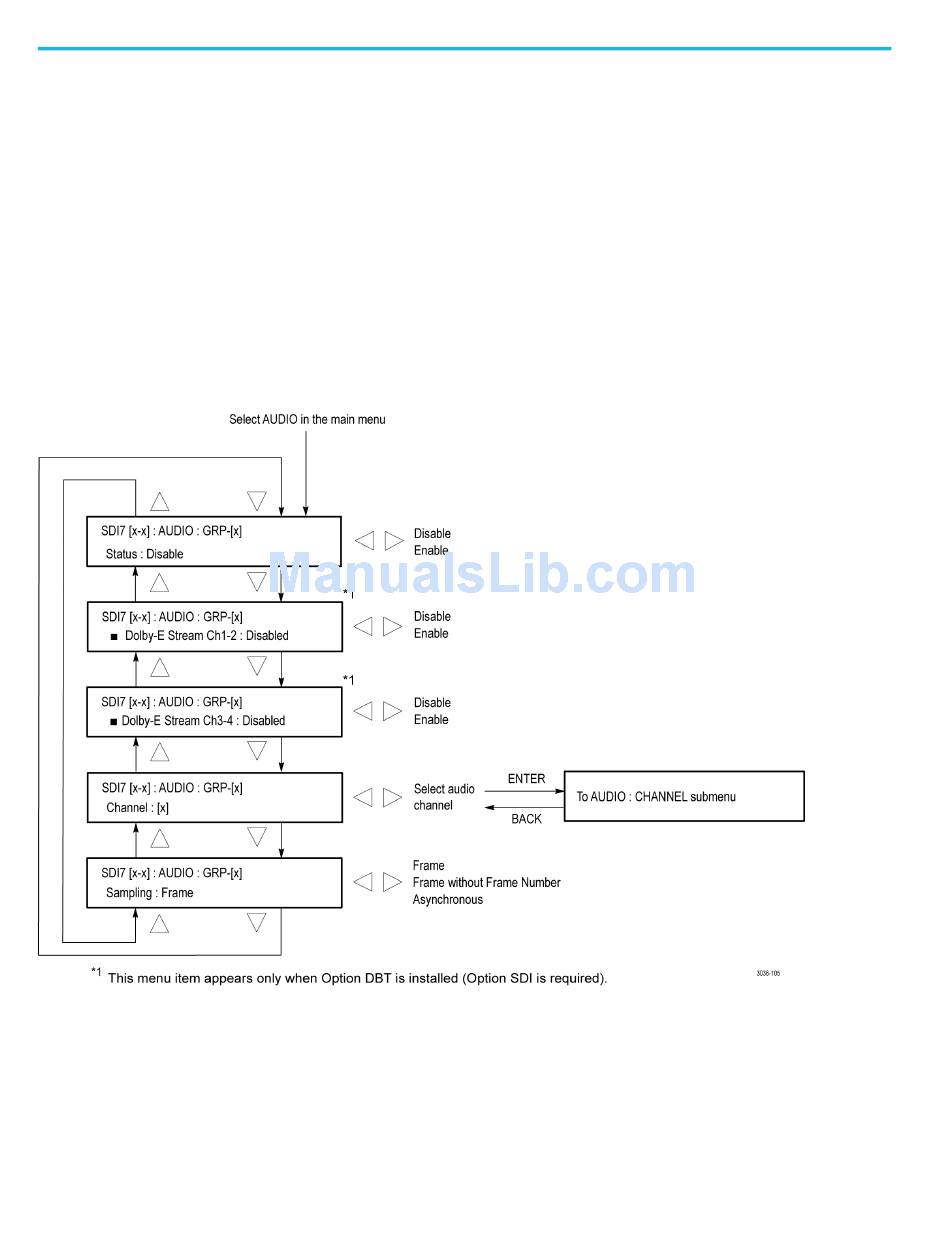

Figure 3-131: SDI7 module AUDIO (EMBEDDED) submenu
3–302
Use this menu to select the audio group for subsequent audio channel
configuration, and to configure audio group parameters. You may select audio
group 1, 2, 3, or 4 for all SD, HD, and 3G Level A formats. For 3G Level B
formats, you may select audio group 1, 2, 3, or 4 for both Link A and Link B.
Press the left (◄) or right (►) arrow button to make the selection. When the
desired audio group and Link are displayed, press the ENTER button to access
the menu for that group.
In each group you can enable or disable the embedded audio, select a specific
channel, and set the sampling mode. Use the up (▲) or down (▼) arrow button
to change the menu items. Press the ENTER button to select a specific channel.
While in the Audio Channel submenu, you can set the embedded audio frequency,
amplitude, and click rate for the channel. The following figure shows the AUDIO
(EMBEDDED) Audio Group submenu. (See Figure 3-131.)
TG8000 Multiformat Test Signal Generator User Manual
